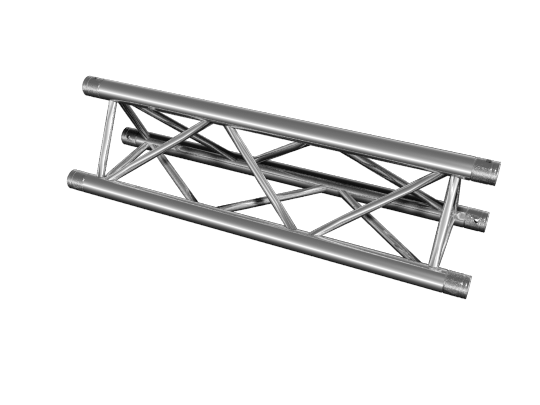

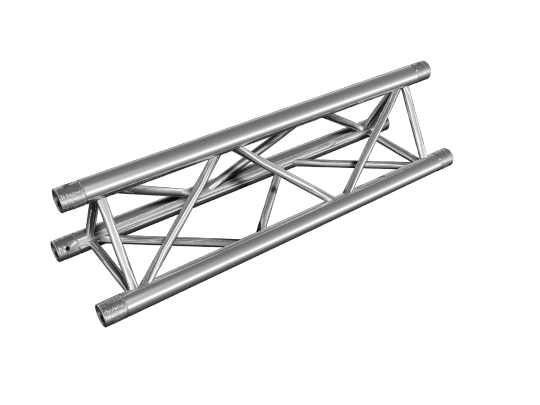

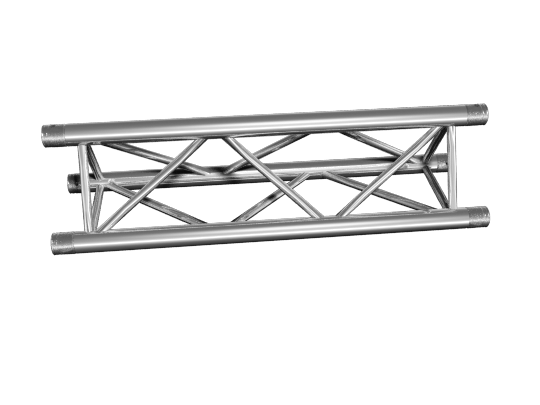

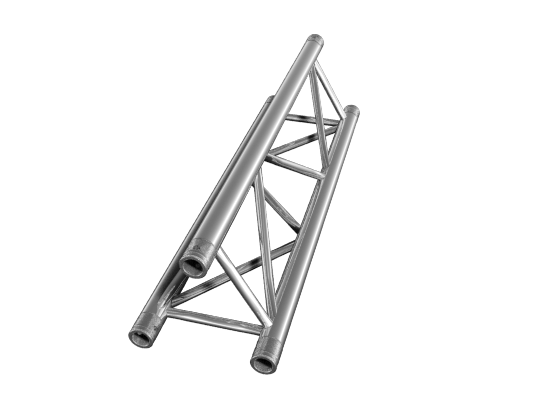

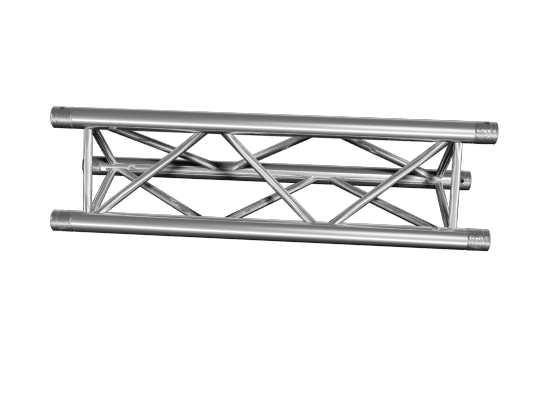

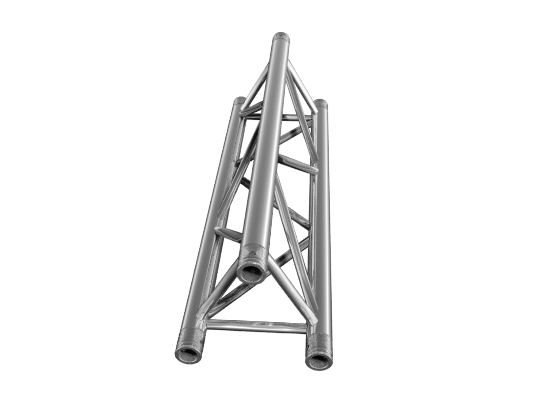

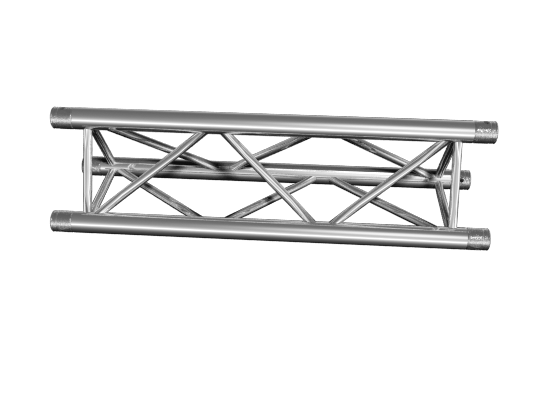

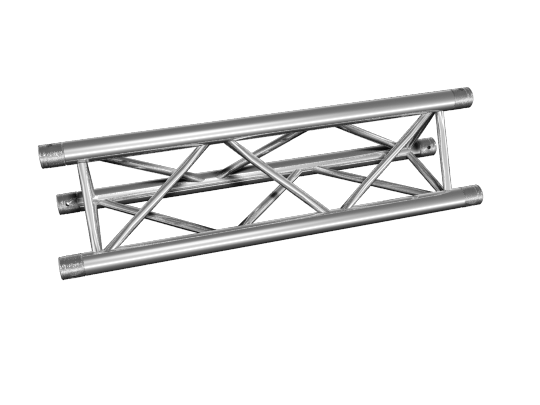

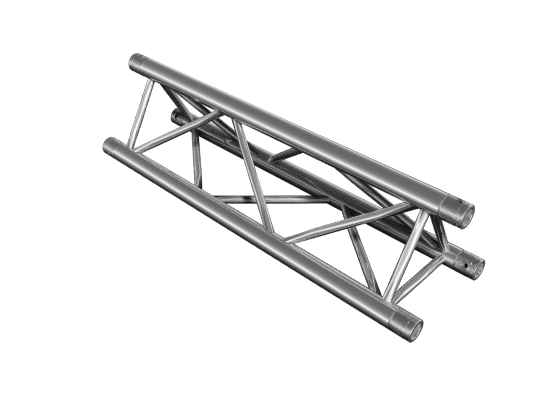

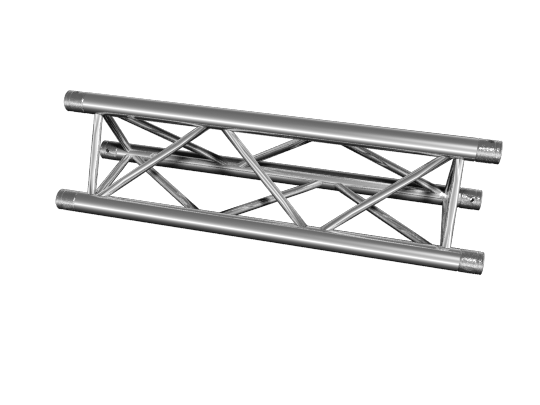

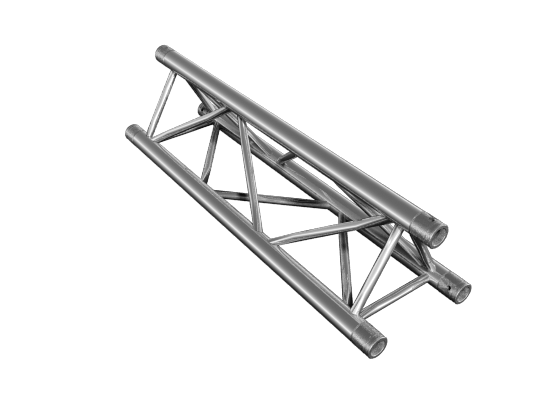

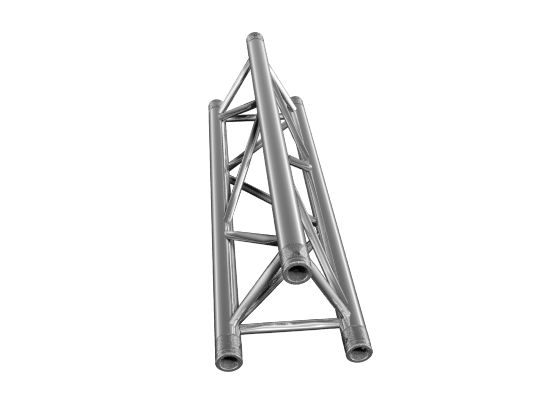

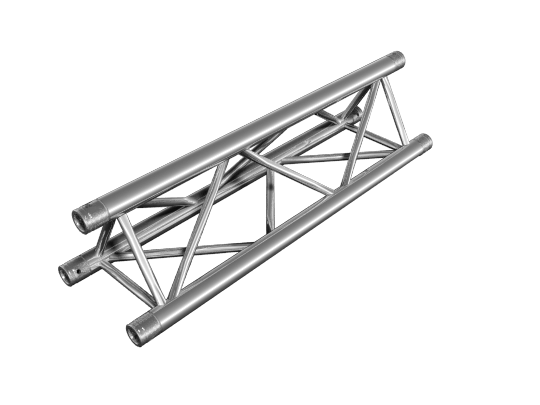

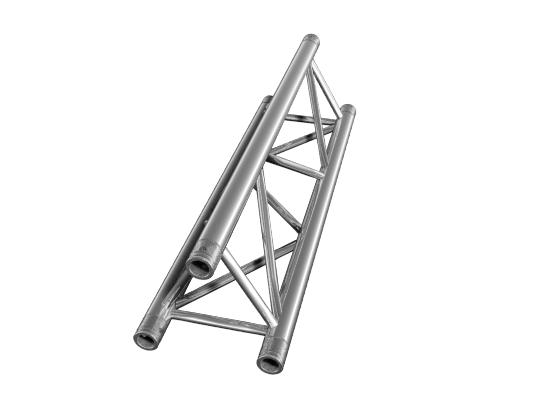

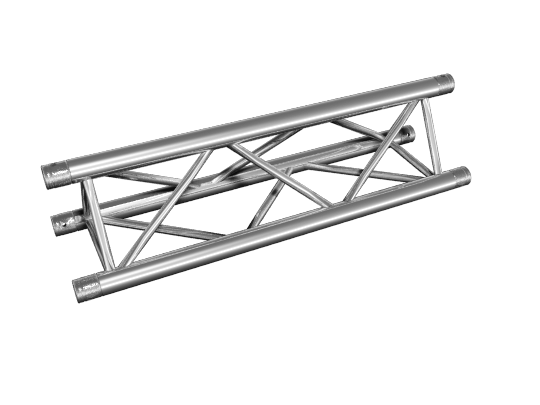

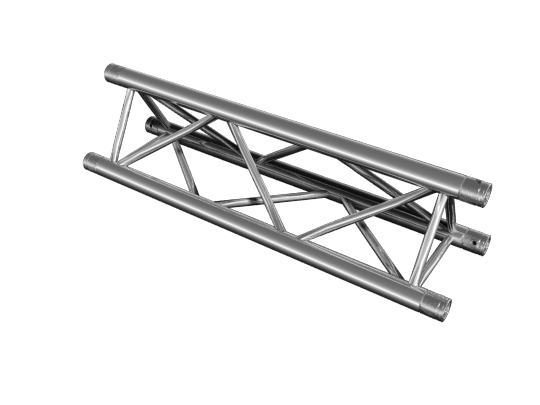

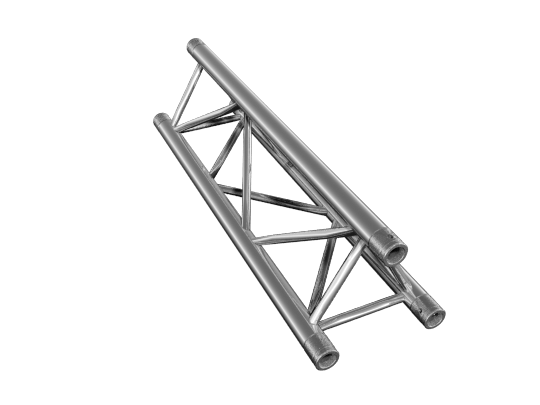

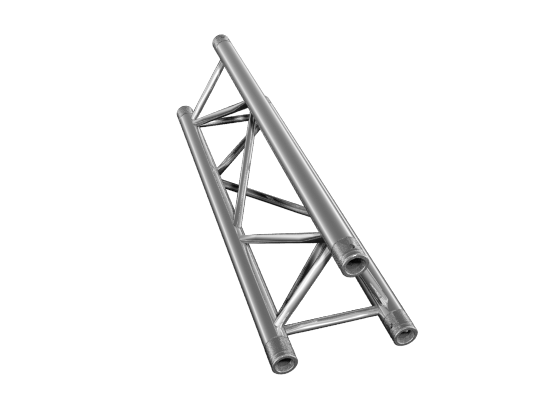

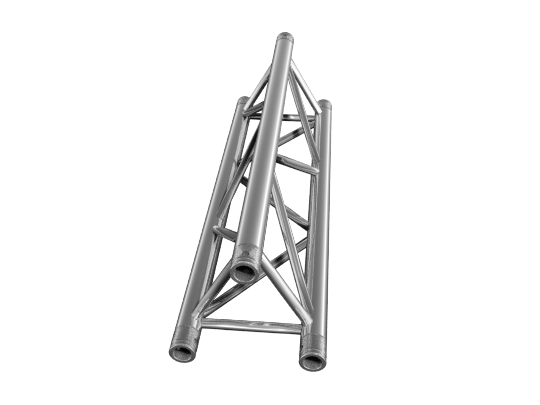

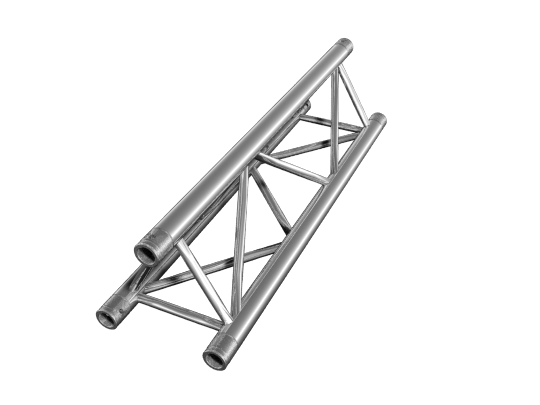

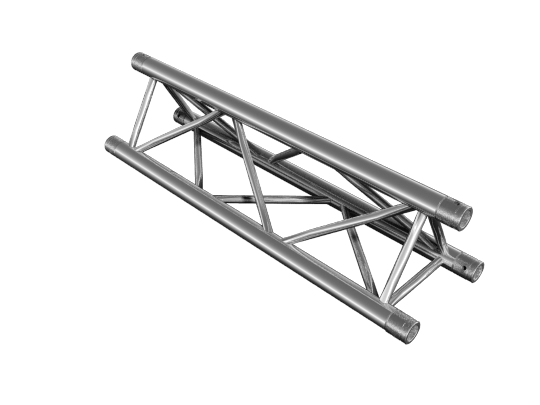

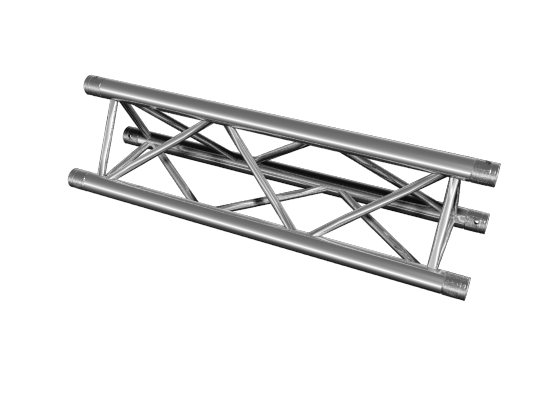

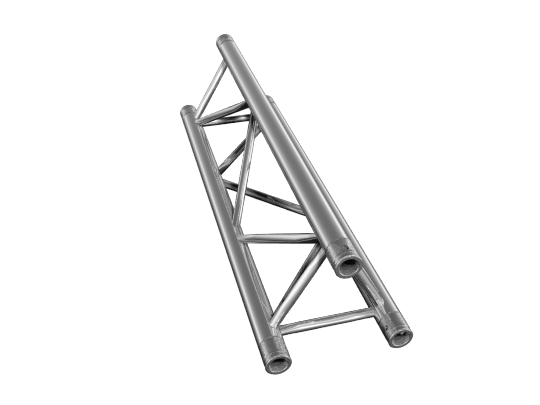

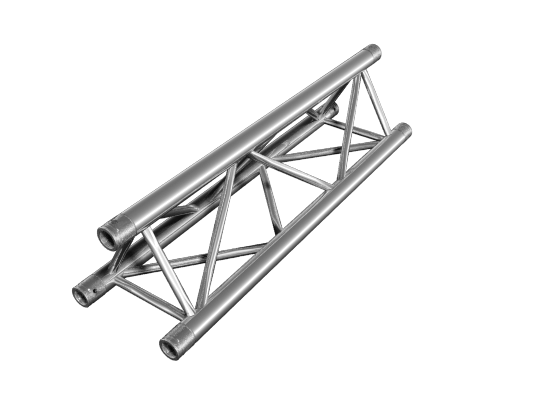

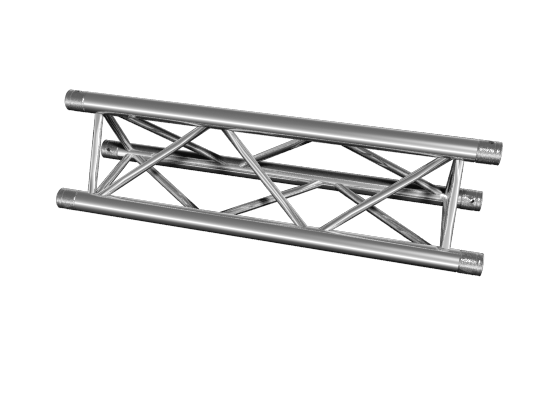

YT33 truss system

Standard available lengths and codes
Metres Feet Weight(kg) Code
0.50 1.64 3.50 YT33050
1.00 3.28 5.80 YT33100
1.50 4.92 7.80 YT33150
2.00 6.56 9.30 YT33200
2.50 8.20 11.00 YT33250
3.00 9.84 12.70 YT33300
3.50 11.48 14.50 YT33350
4.00 13.12 16.20 YT33400
4.50 14.76 17.00 YT33450
5.00 16.40 18.30 YT33500
other lengths available on request
ASK THE PRODUCTS QUOTES
YT33 truss system

YT33 truss system

Thank you for your inquiry, please enter your information in the form below so that we can serve you better!

Purchase quantity：



parameter

  • Colour: Black / Aluminum (Other colours available on request)
  • Material: aluminum 6082
  • Number of points: 3-point
  • Edge dimension: 29cm
  • System: YT33
  • Type: straight
  • Truss length: 0.5-5m
  • Main Pipe Diameter: 50mm
  • Wall thickness main pipe: 2mm
  • Brace diameter: 20mm
  • Wall thickness Brace: 2mm

NEED HELP?

Need advice about one of our products or services?

CONTACT US

DOWNLOAD

Accessories

  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 2-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 3-WAY CORNER
  • YT33 4-WAY CORNER
  • YT33 4-WAY CORNER
  • YT33 4-WAY CORNER
  • YT33 4-WAY CORNER
  • YT33 4-WAY CORNER
  • YT33 5-WAY CORNER
  • YT33 5-WAY CORNER
  • YT33 5-WAY CORNER
  • YT33 6-WAY CORNER
  • YT33 BASE PLATE

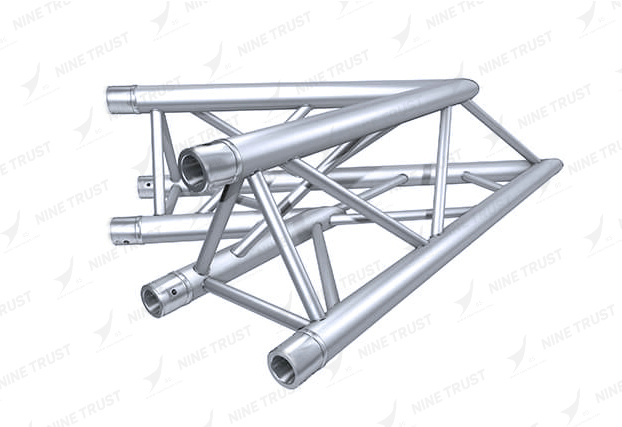

  • YT33 2-WAY CORNER C19 45°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

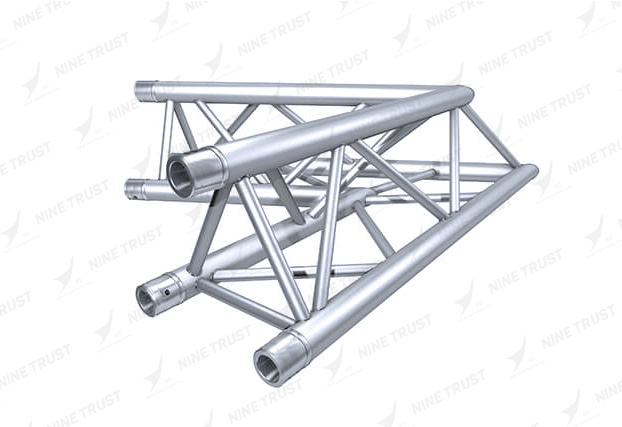

  • YT33 2-WAY CORNER C20 60°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

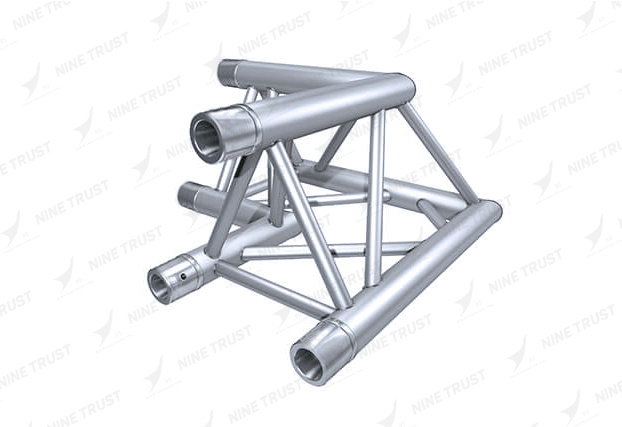

  • YT33 2-WAY CORNER C21 90°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

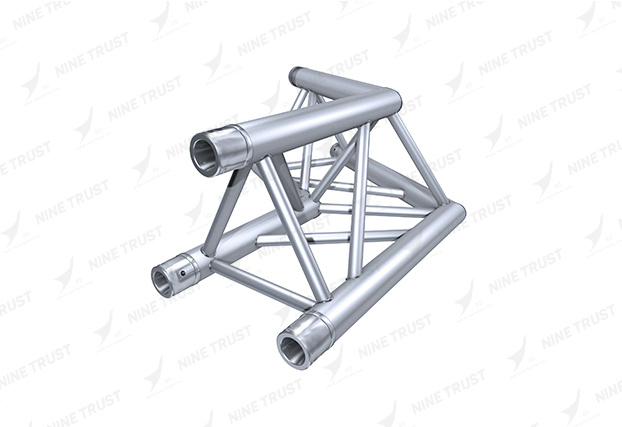

  • YT33 2-WAY CORNER C22 120°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT33 2-WAY CORNER C23 135°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT33 2-WAY CORNER C24 90°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

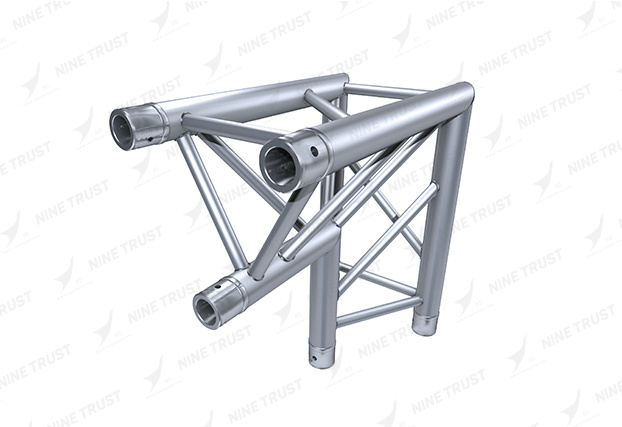

  • YT33 2-WAY CORNER C25 90°

    YT33 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

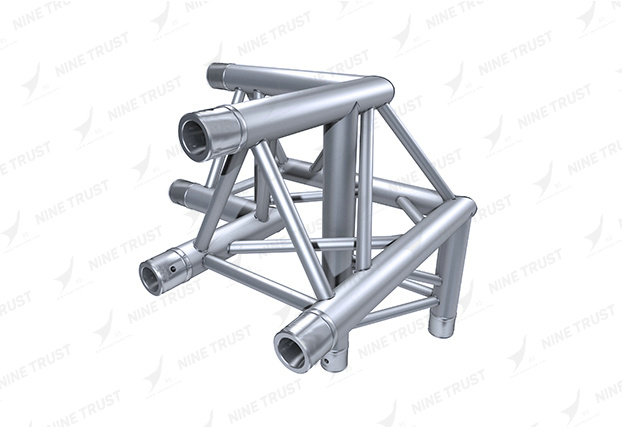

  • YT33 3-WAY CORNER C31

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

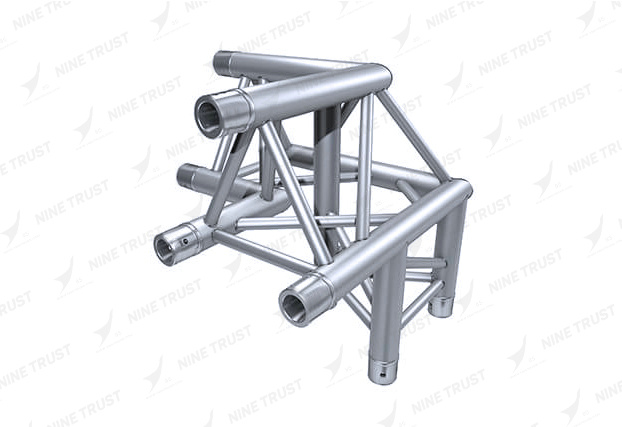

  • YT33 3-WAY CORNER C32

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

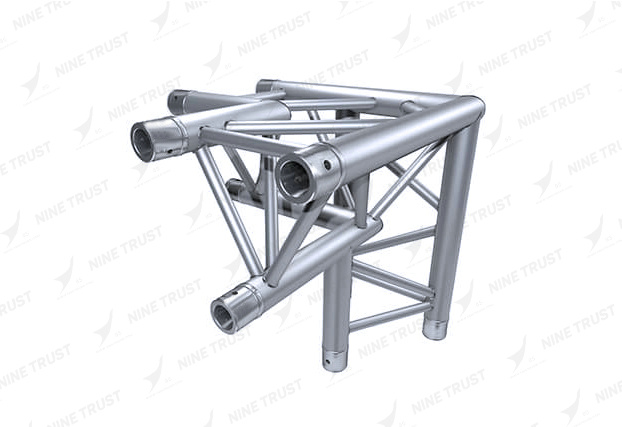

  • YT33 3-WAY CORNER C33

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

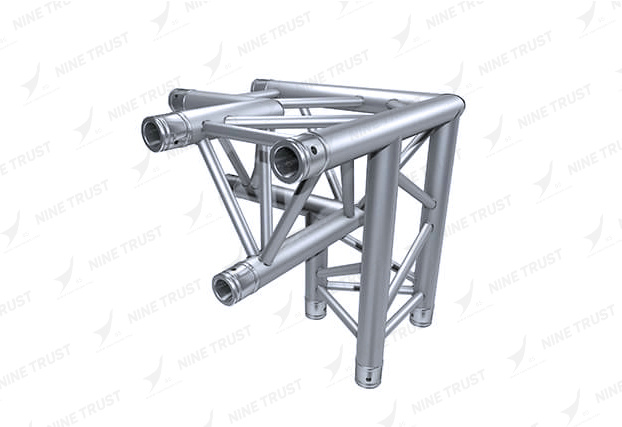

  • YT33 3-WAY CORNER C34

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

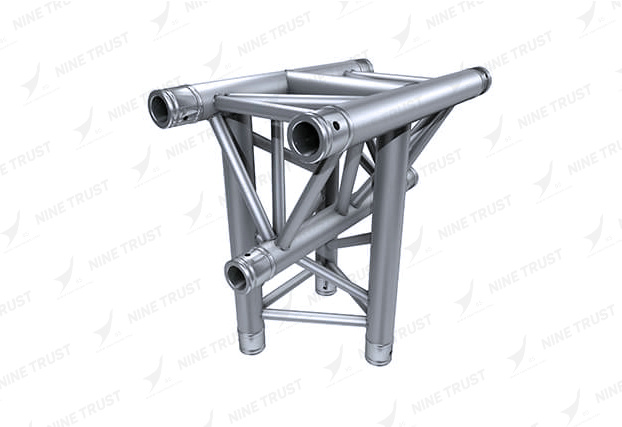

  • YT33 3-WAY CORNER T35

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

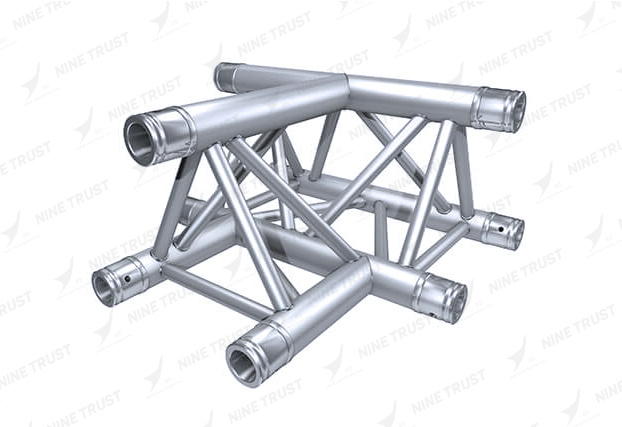

  • YT33 3-WAY CORNER T36

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

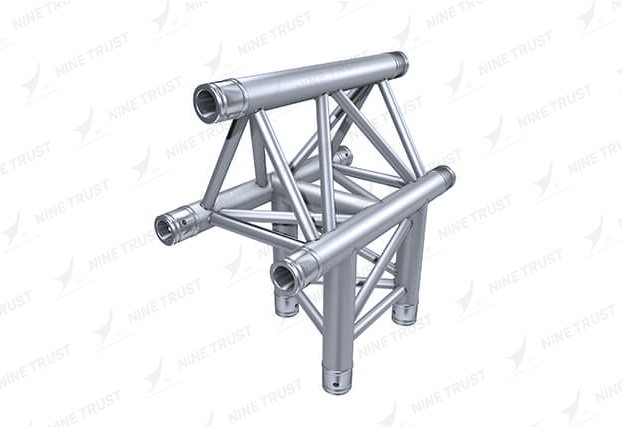

  • YT33 3-WAY CORNER T37

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT33 3-WAY CORNER T38

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

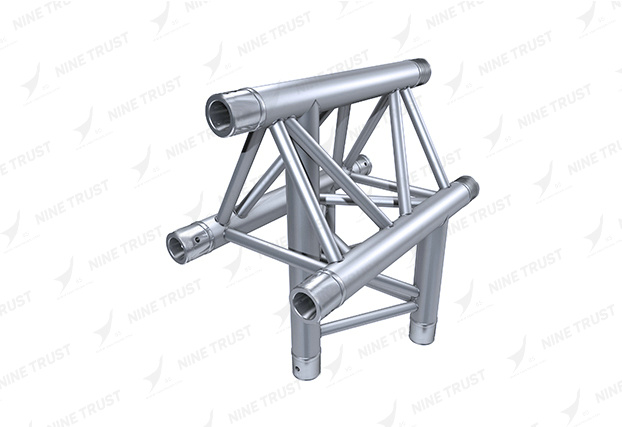

  • YT33 3-WAY CORNER T39

    YT33 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

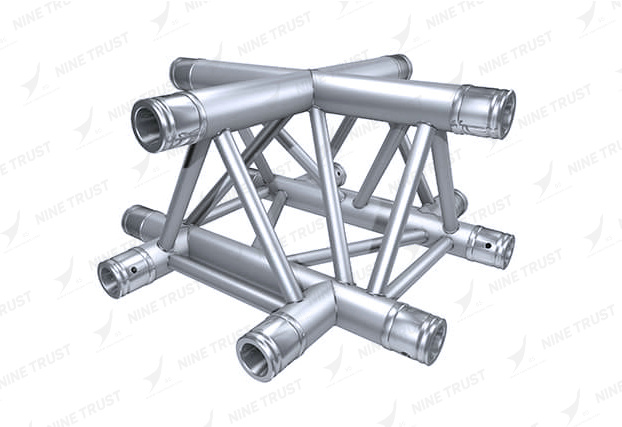

  • YT33 4-WAY CORNER C41

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

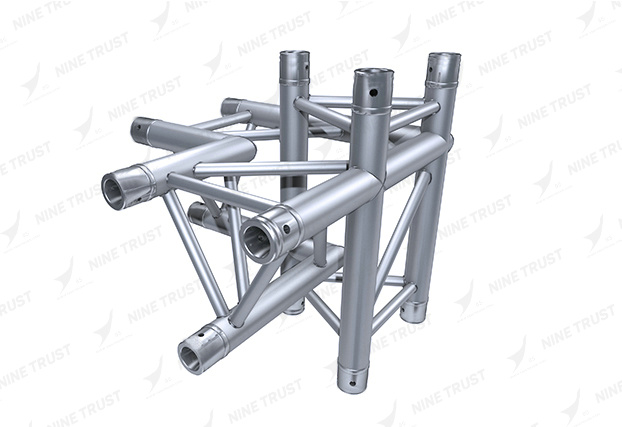

  • YT33 4-WAY CORNER C44

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 22cm

    System: YT33

    Type: Corner

    Truss length: 50cm

    Main Pipe Diameter: 35mm

    Wall thickness main pipe: 160mm

    Brace diameter: 8mm

    CONTACT US
  • YT33 4-WAY CORNER C45

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT33 4-WAY CORNER T42

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

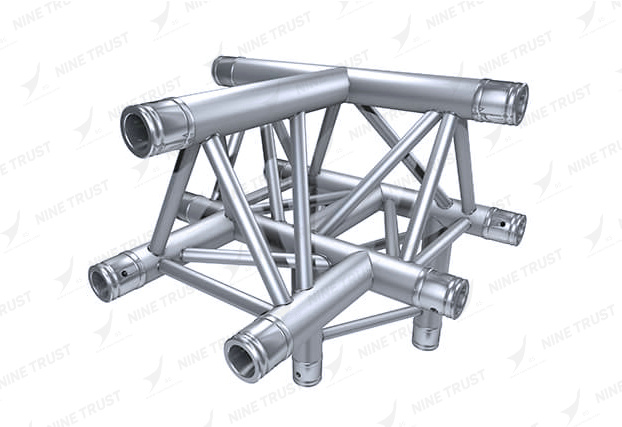

  • YT33 4-WAY CORNER T43

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

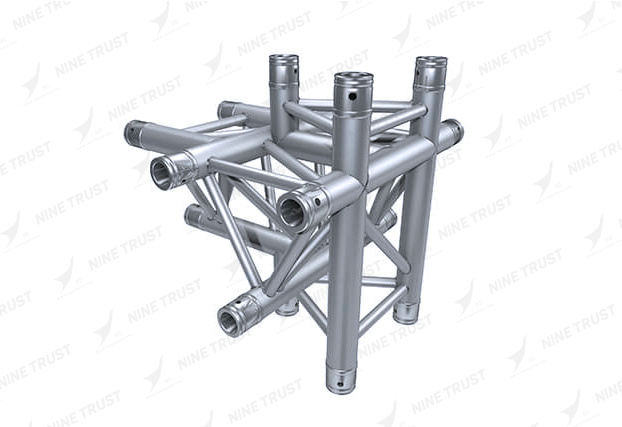

  • YT33 5-WAY CORNER C51

    YT33 5-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

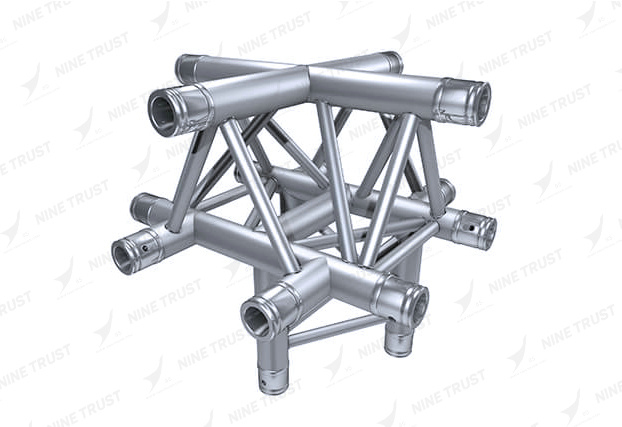

  • YT33 4-WAY CORNER C52

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

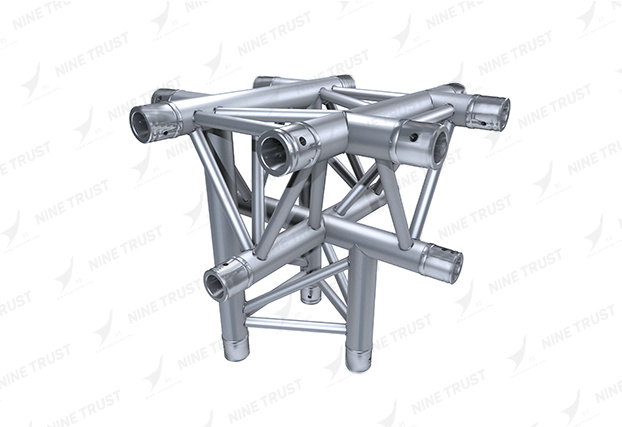

  • YT33 4-WAY CORNER C53

    YT33 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

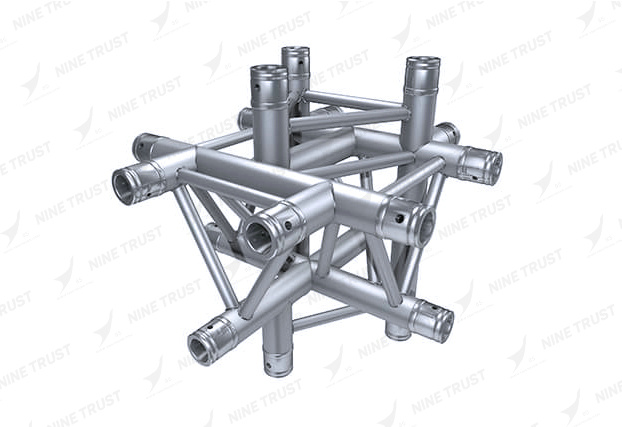

  • YT33 6-WAY CORNER C61

    YT33 6-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

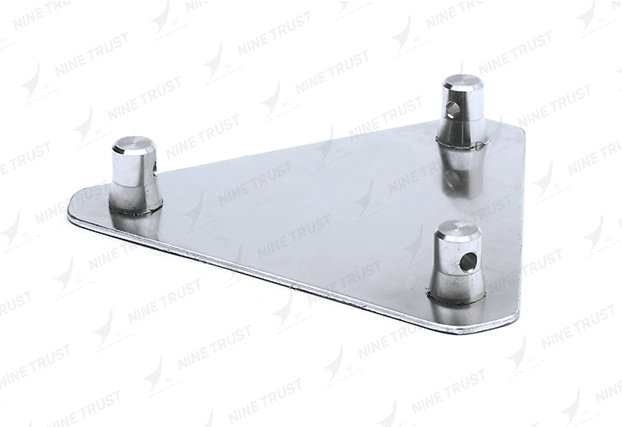

  • YT33 BASE PLATE

    YT33 BASE PLATE

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 3-point

    Edge dimension: 29cm

    System: YT33

    Type: Sonderteil

    Truss length: 32cm

    CONTACT US
