variable corner YT 32 - YT 34
Colour: aluminum
TÜV certificate: No
Material: AIMgSi F31
System: YT34
Type: Variable corner
Suitable for YT32-YT34

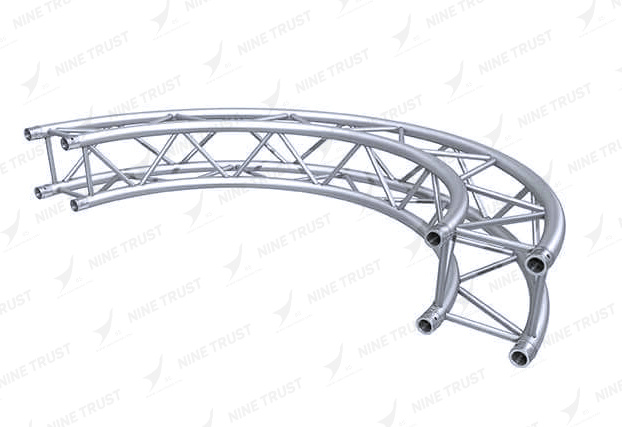

YT34 circle truss system
| Standard available lengths and codes | ||||
|---|---|---|---|---|
| Diameter(Metres) | Diameter(Feet) | Deg | Weight(kg) | Code |
| 2.00 | 6.56 | 180° | 17.00 | YT34R10-180 |
| 3.00 | 9.84 | 90° | 13.00 | YT34R15-90 |
| 4.00 | 13.12 | 90° | 16.40 | YT34R20-90 |
| 5.00 | 16.40 | 45° | 11.20 | YT34R25-45 |
| 6.00 | 19.68 | 60° | 16.20 | YT34R30-60 |
| 7.00 | 22.96 | 45° | 15.00 | YT34R35-45 |
| 8.00 | 26.24 | 45° | 16.50 | YT34R40-45 |
| 9.00 | 29.52 | 45° | 19.00 | YT34R45-45 |
| 10.00 | 32.80 | 30° | 15.50 | YT34R50-30 |
| other lengths available on request | ||||
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material: aluminum 6082
- Number of points: 4-point
- Edge dimension: 29cm
- System: YT34
- Type: circle
- Diameter circle: 2-10m
- Main Pipe Diameter: 50mm
- Wall thickness main pipe: 2mm
- Brace diameter: 20mm
- Wall thickness Brace: 2mm
DOWNLOAD
Accessories
-
variable corner YT 32 - YT 34 -
YT 34 2-way corner -
YT 34 2-way corner -
YT 34 2-way corner -
YT 34 2-way corner -
YT 34 2-way corner -
YT 34 2-way corner -
YT 34 3-way corner -
YT 34 3-way corner -
YT 34 3-way corner -
YT 34 3-way corner -
YT 34 3-way corner -
YT 34 3-way corner -
YT 34 4-way corner -
YT 34 4-way corner -
YT 34 5-way corner -
YT 34 base plate -
YT 34 Multi Box corner
-
CONTACT US -

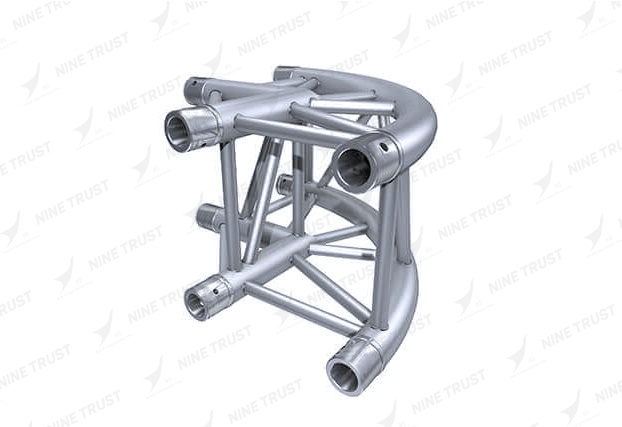

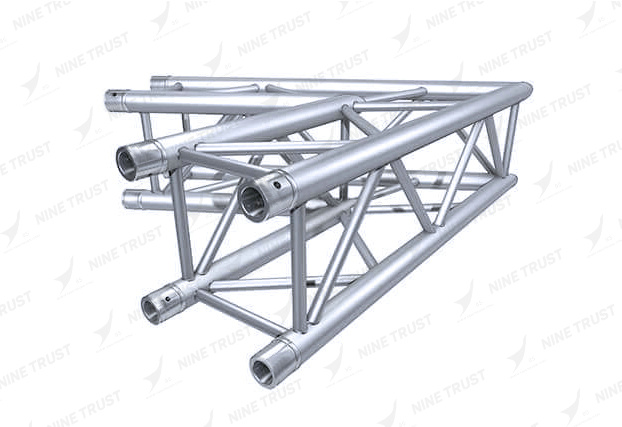

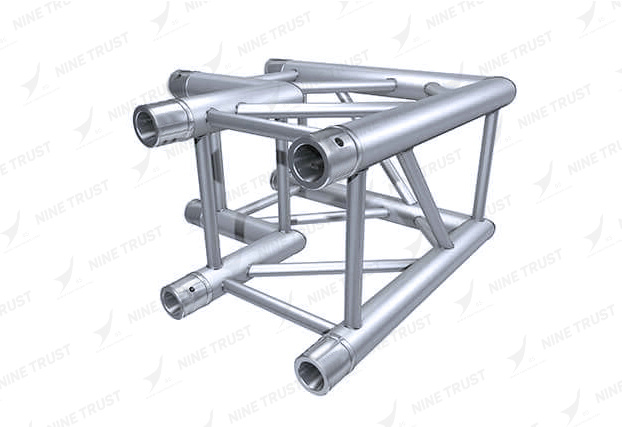

YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

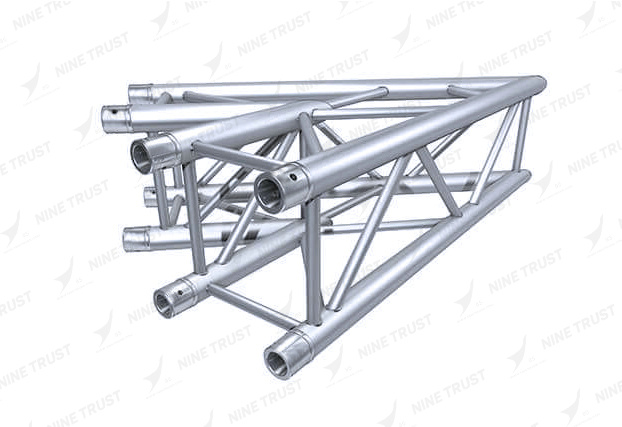

YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

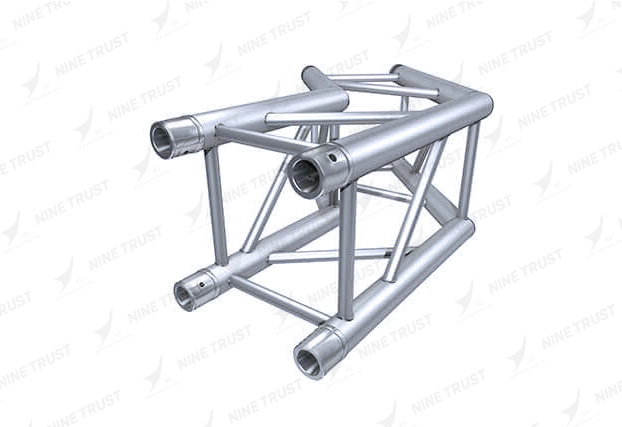

YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

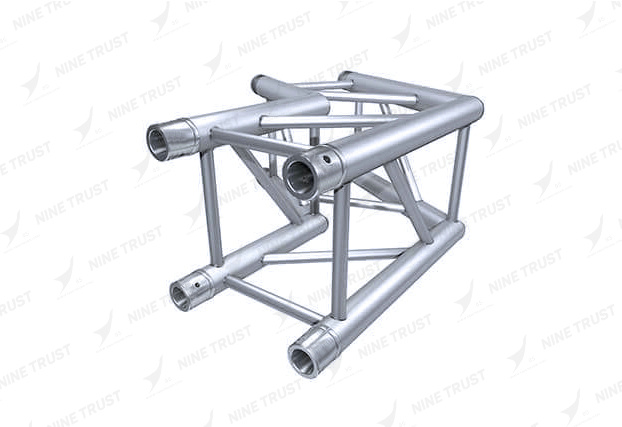

YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 2-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

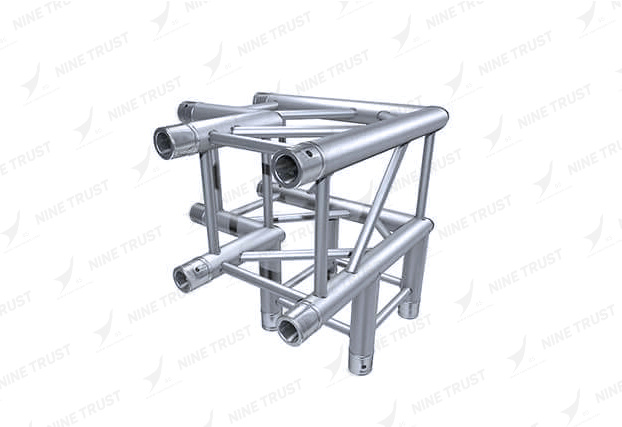

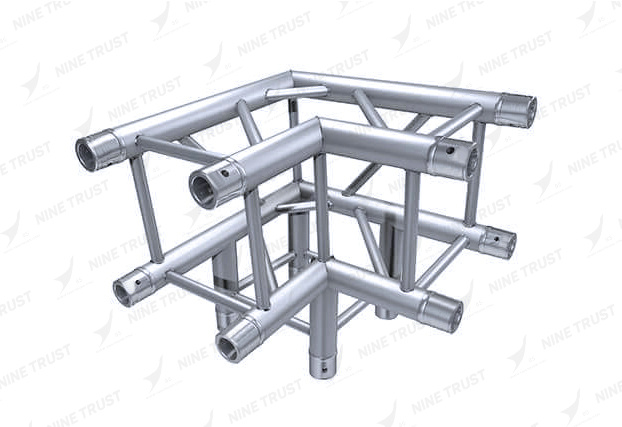

YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

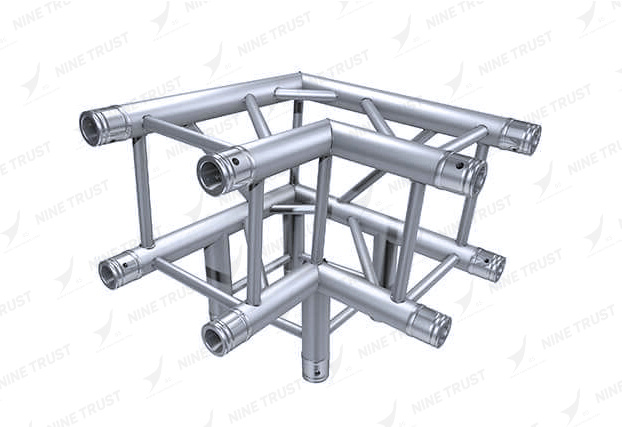

YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

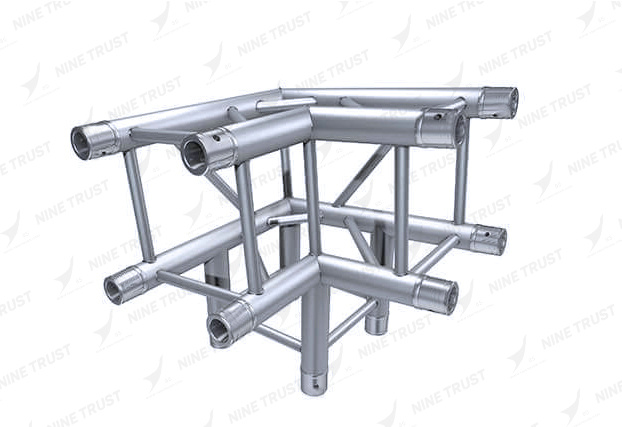

YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 3-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

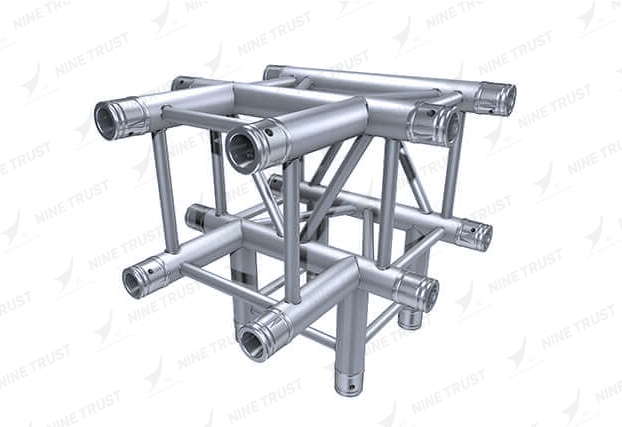

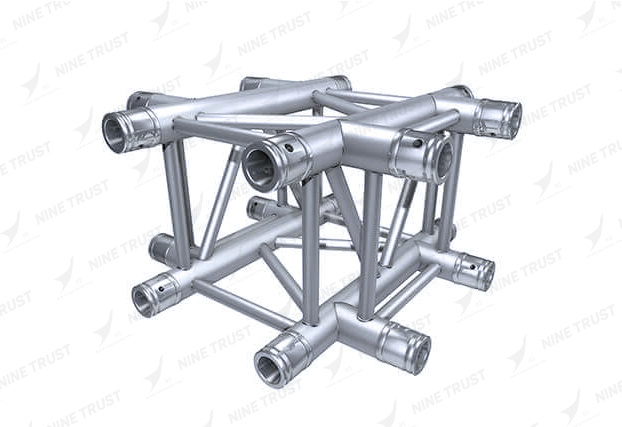

YT 34 4-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-
YT 34 4-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

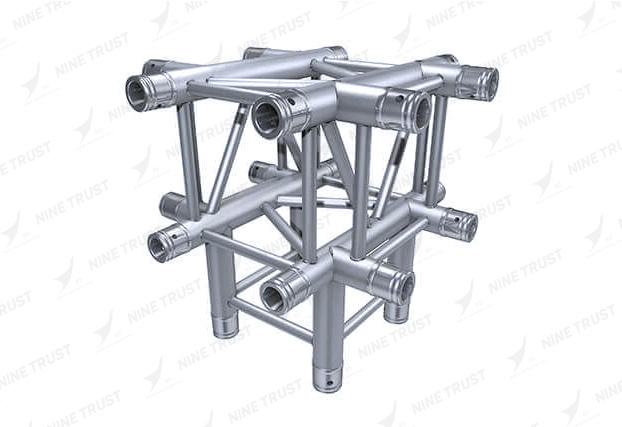

YT 34 5-way corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
-

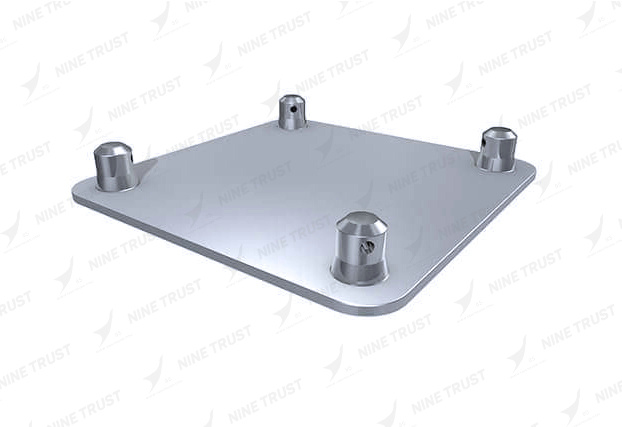

YT 34 base plate
CONTACT USColour: aluminum
Compatibility:Prolyte FD34
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: Sonderteil
-
YT 34 Multi Box corner
CONTACT USColour: aluminum
TÜV certificate: No
Material: AIMgSi F31
Number of points: 4-point
Edge dimension: 29cm
System: YT34
Type: corner
Main Pipe Diameter:50mm
Wall thickness main pipe:2mm
Brace diameter:20mm
Wall thickness Brace:2mm
