variable corner YT 32 - YT 34
Colour: aluminum
TÜV certificate: No
Material: Aluminum 6082
System: YT34
Type: Variable corner
Suitable for YT32-YT34

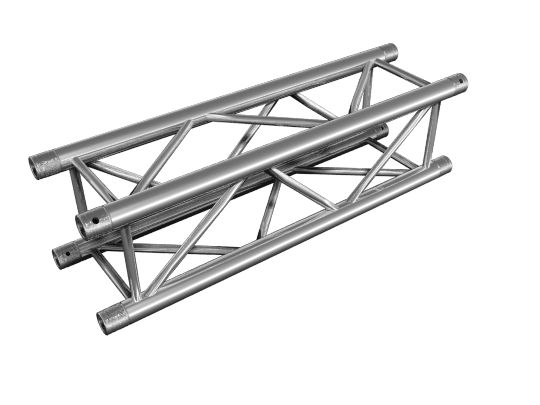

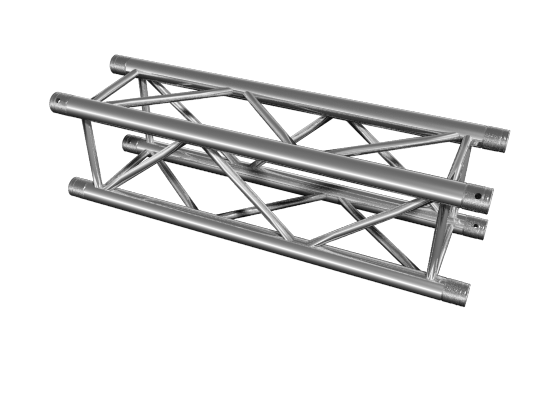

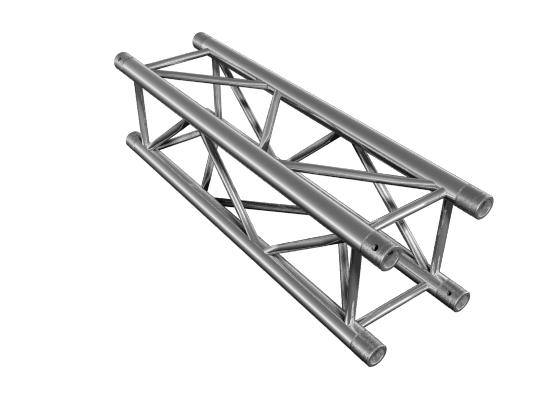

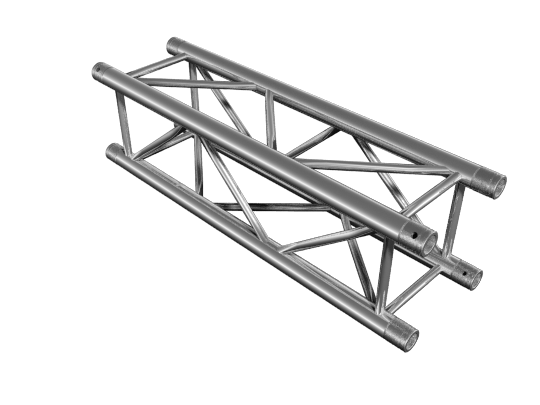

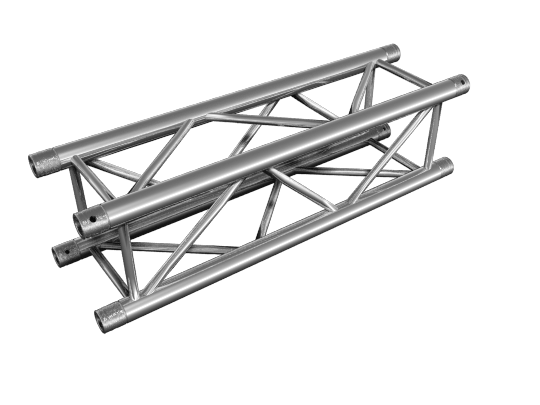

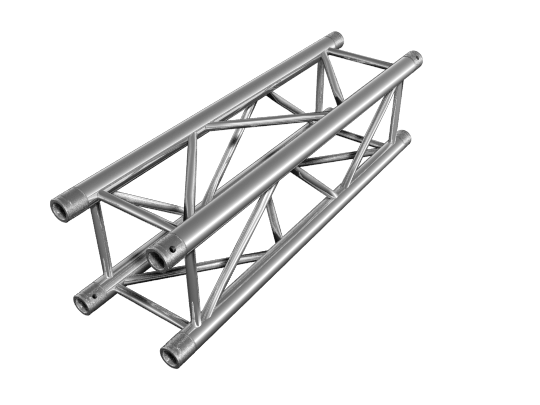

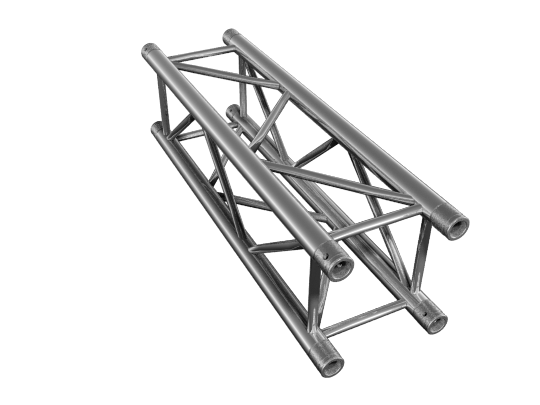

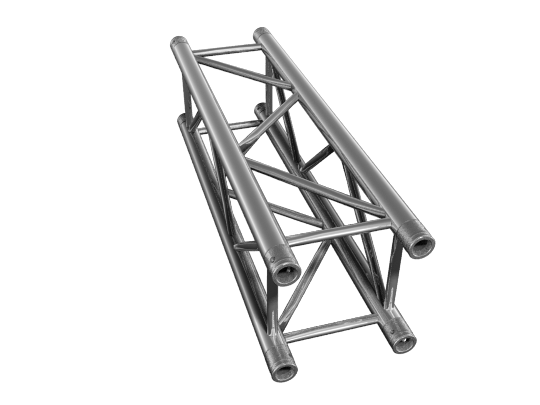

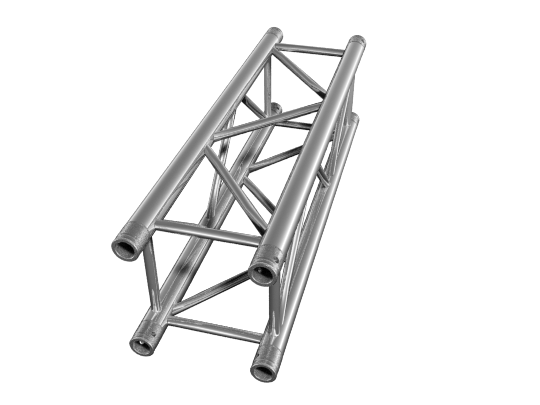

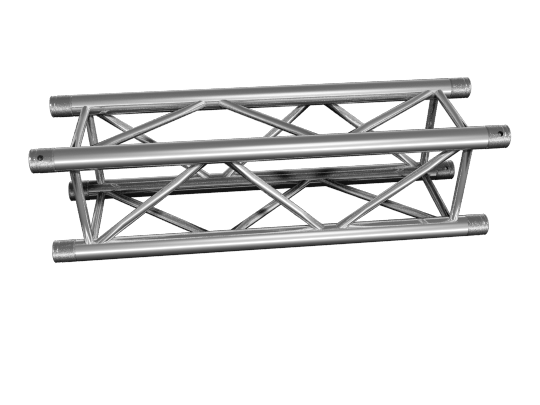

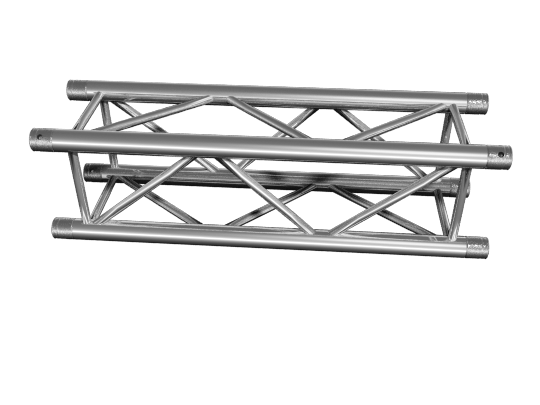

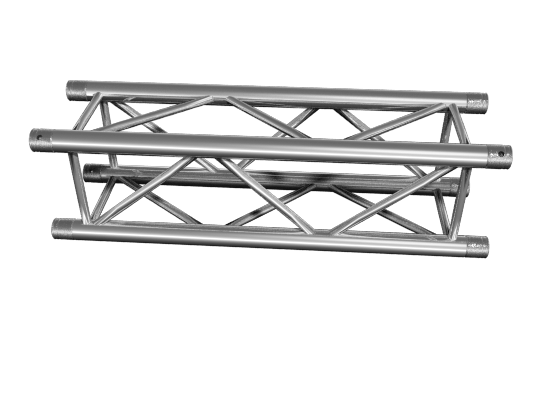

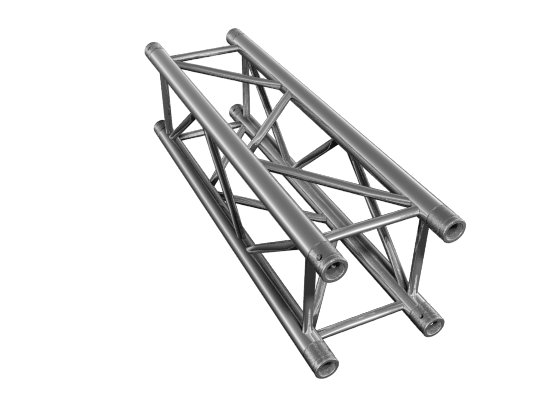

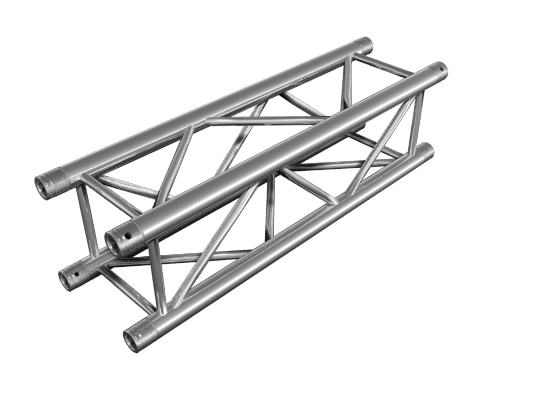

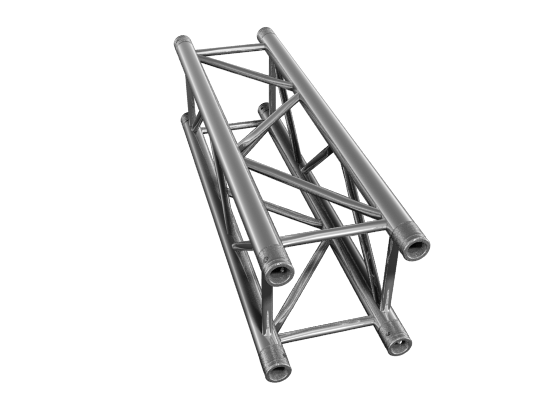

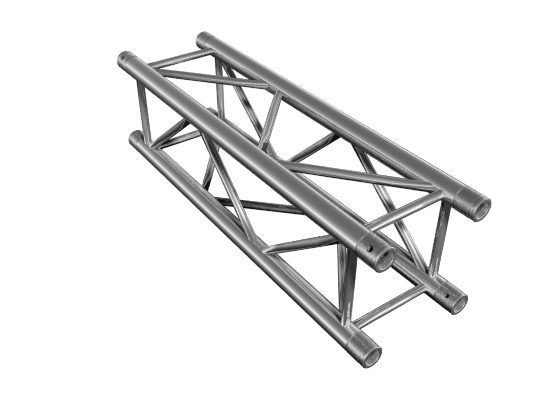

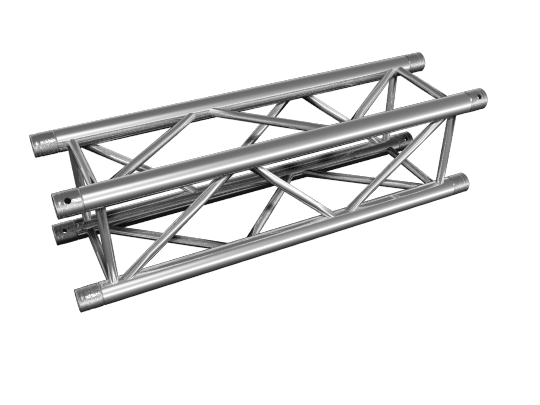

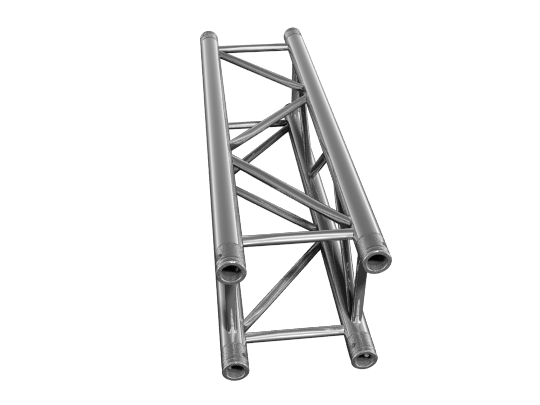

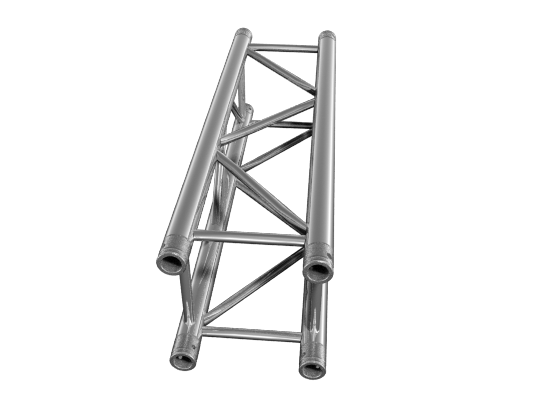

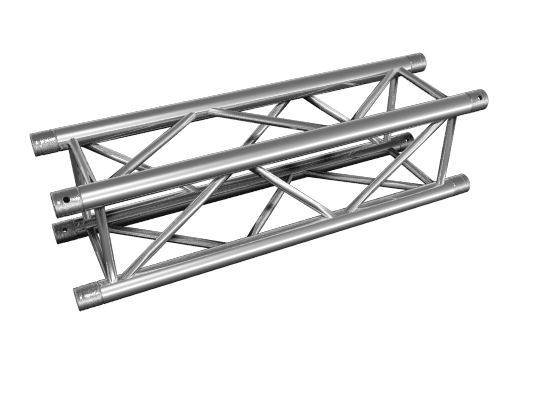

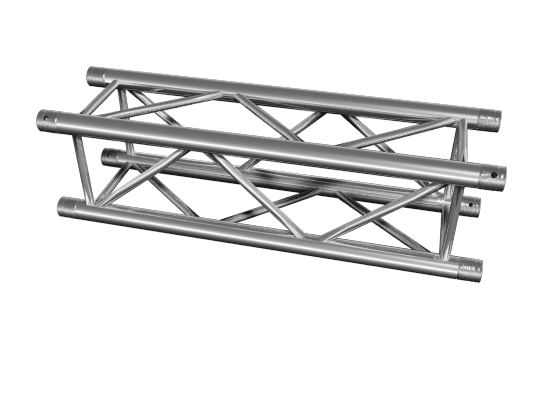

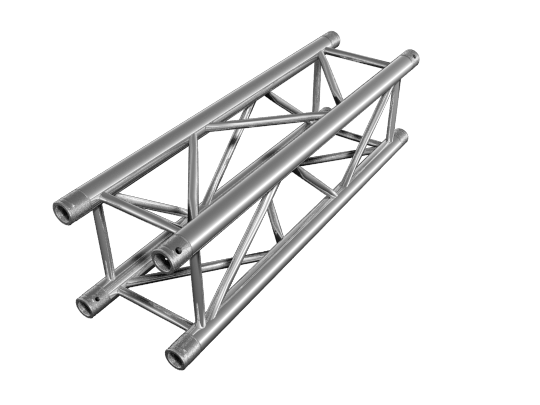

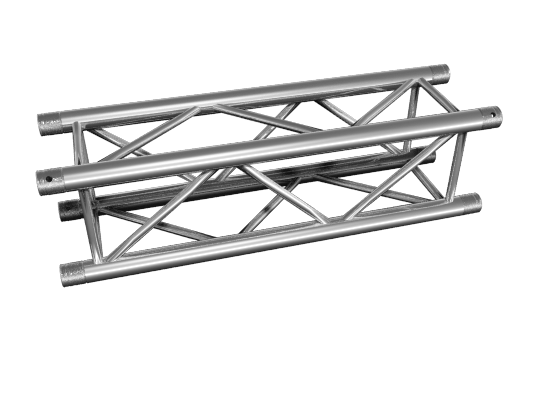

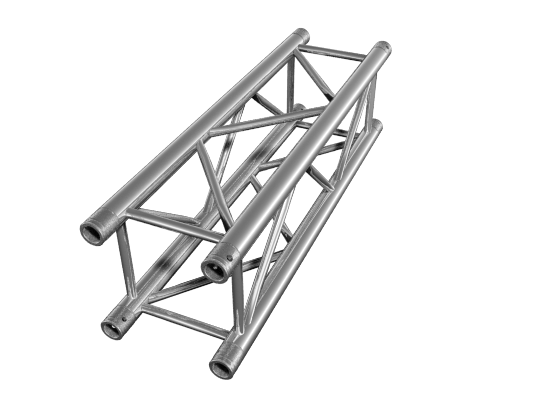

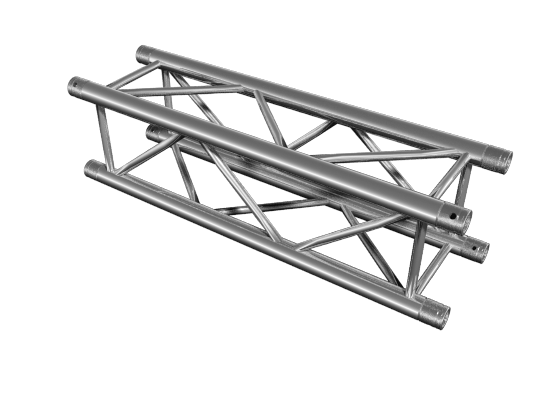

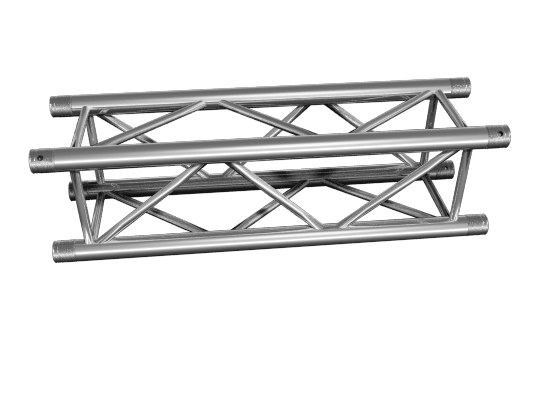

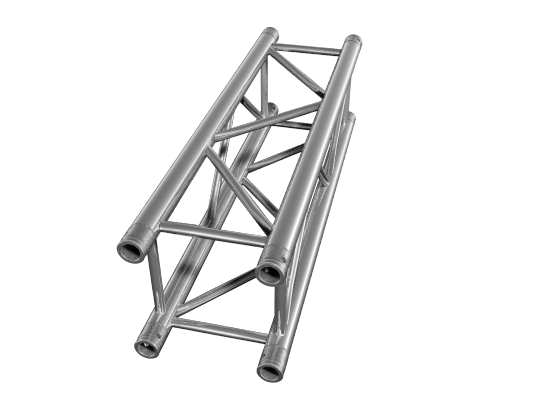

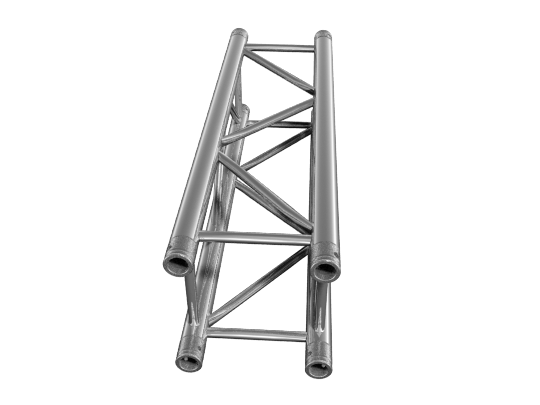

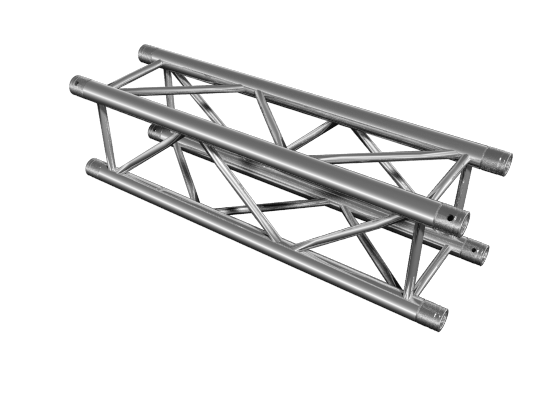

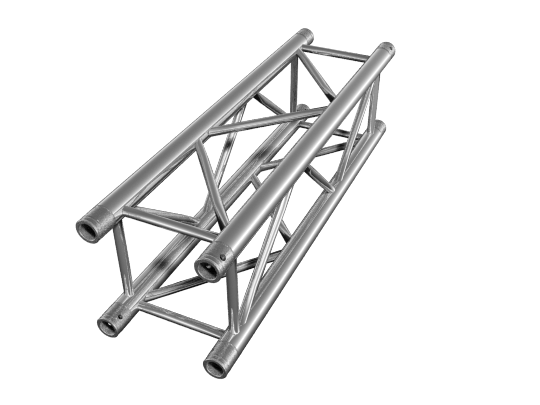

YT34 truss system
| Standard available lengths and codes | |||
|---|---|---|---|
| Metres | Feet | Weight(kg) | Code |
| 0.50 | 1.64 | 4.90 | YT34050 |
| 1.00 | 3.28 | 7.50 | YT34100 |
| 1.50 | 4.92 | 9.70 | YT34150 |
| 2.00 | 6.56 | 12.00 | YT34200 |
| 2.50 | 8.20 | 14.00 | YT34250 |
| 3.00 | 9.84 | 16.00 | YT34300 |
| 3.50 | 11.48 | 19.00 | YT34350 |
| 4.00 | 13.12 | 21.00 | YT34400 |
| 4.50 | 14.76 | 23.60 | YT34450 |
| 5.00 | 16.40 | 25.90 | YT34500 |
| other lengths available on request | |||
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material: Aluminum 6082
- Number of points: 4-point
- Edge dimension: 29cm
- System: YT34
- Type: straight
- Truss length: 0.5-5m
- Diameter main pipe: 50mm
- Wall thickness main pipe: 2mm
- Diameter Brace: 20mm
- Wall thickness Brace: 2mm
DOWNLOAD
