YT22 3-WAY CORNER
Colour: aluminum
Material: aluminum 6082
Number of points: 2-point
Edge dimension: 22cm
System: YT22
Type: Corner
Truss length: 100cm
Main Pipe Diameter: 35mm
Wall thickness main pipe: 1.6mm
Brace diameter: 8mm

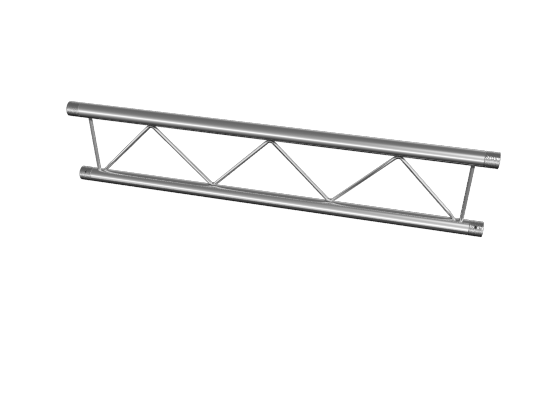

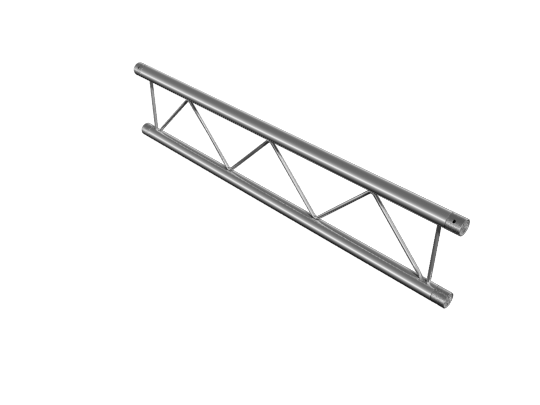

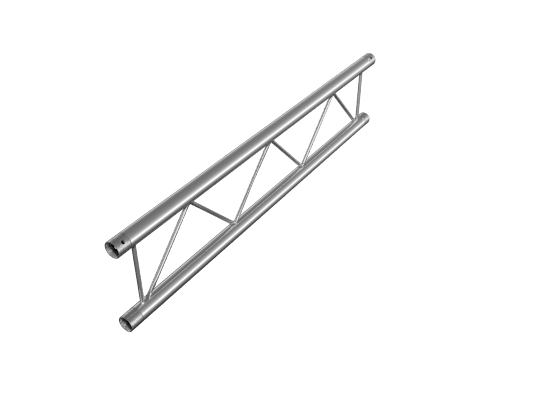

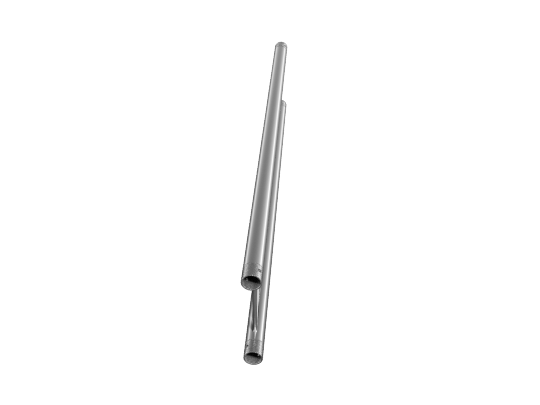

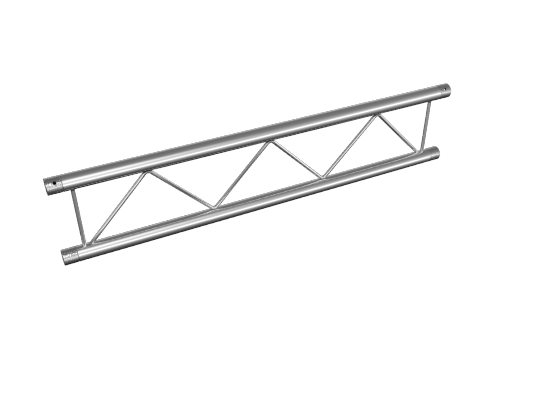

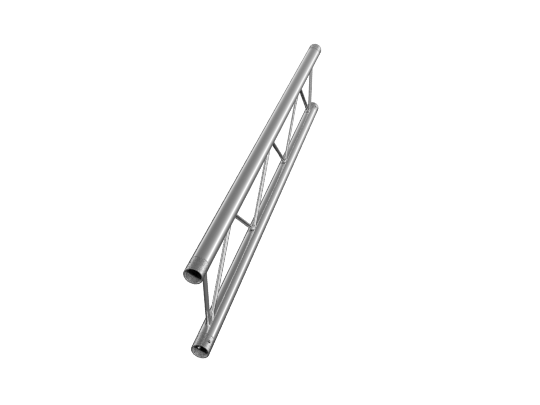

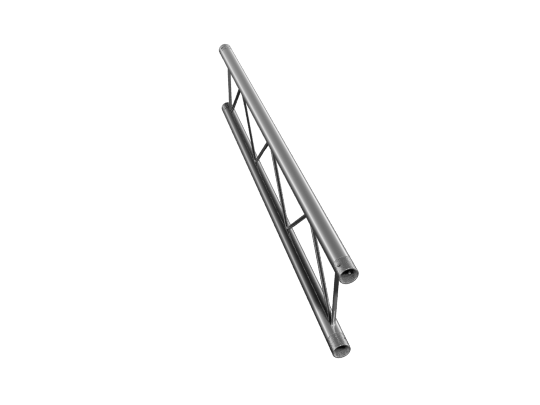

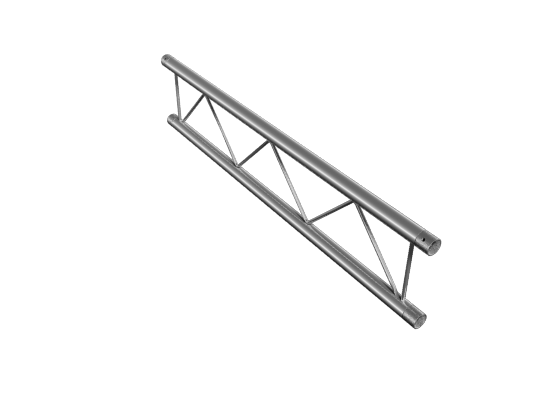

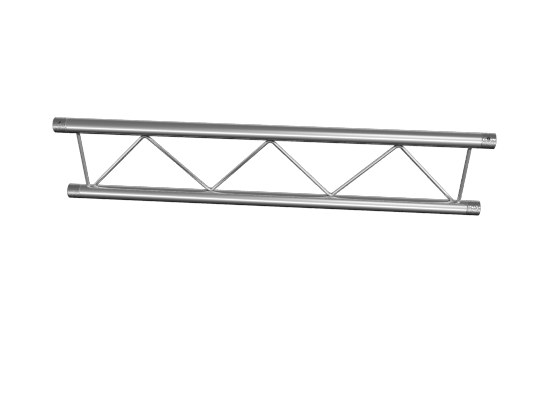

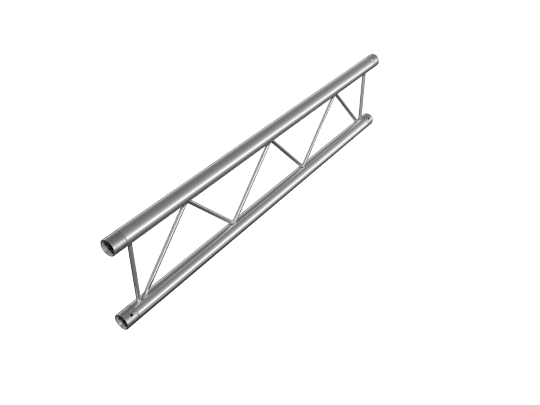

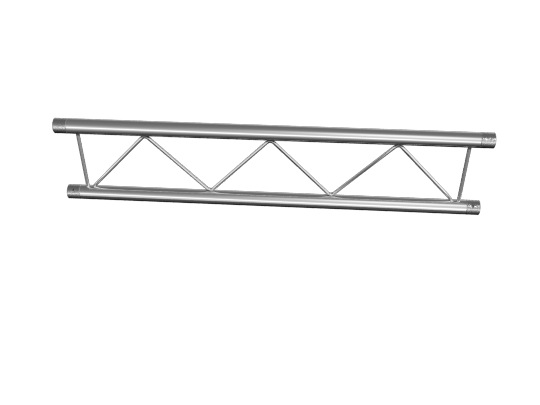

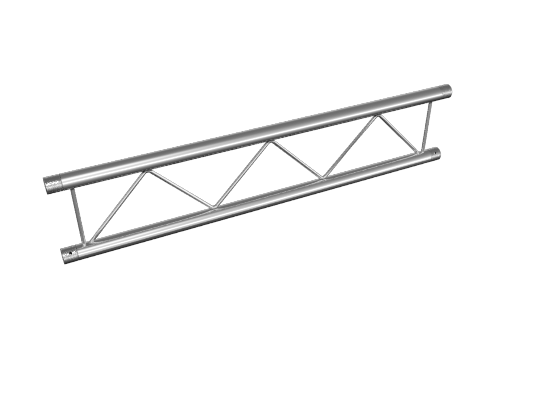

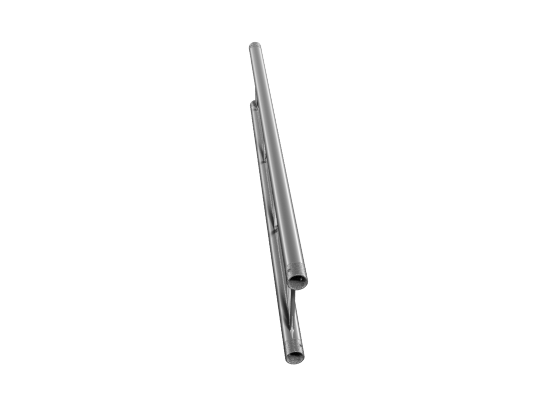

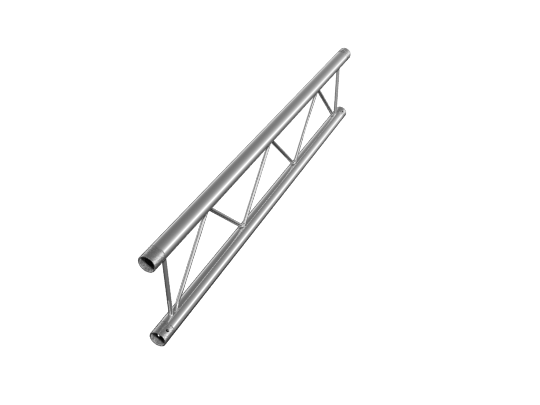

YT22 truss system
| Standard available lengths and codes | |||
|---|---|---|---|
| Metres | Feet | Weight(kg) | Code |
| 0.50 | 1.64 | 1.00 | YT22050 |
| 1.00 | 3.28 | 1.50 | YT22100 |
| 1.50 | 4.92 | 2.00 | YT22150 |
| 2.00 | 6.56 | 2.70 | YT22200 |
| 2.50 | 8.20 | 3.20 | YT22250 |
| 3.00 | 9.84 | 3.80 | YT22300 |
| 3.50 | 11.48 | 4.30 | YT22350 |
| 4.00 | 13.12 | 4.90 | YT22400 |
| 4.50 | 14.76 | 5.50 | YT22450 |
| 5.00 | 16.40 | 6.00 | YT22500 |
| other lengths available on request | |||
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material: Aluminum 6082-T6
- Number of points: 2-point
- Edge dimension: 10cm
- System: YT22
- Type: Straight
- Truss length: 0.5-5m
- Main Pipe Diameter: 35mm
- Wall thickness main pipe: 1,60mm
- Snake brace diameter: 8mm
