YT32 circle truss H system

Standard available lengths and codes
Diameter(Metres) Diameter(Feet) Deg Weight(kg) Code
2.00 6.56 180° 6.90 YT32R10-180H
3.00 9.84 90° 5.30 YT32R15-90H
4.00 13.12 90° 6.90 YT32R20-90H
5.00 16.40 45° 4.60 YT32R25-45H
6.00 19.68 45° 5.20 YT32R30-45H
7.00 22.96 45° 6.20 YT32R35-45H
8.00 26.24 45° 6.90 YT32R40-45H
9.00 29.52 45° 7.90 YT32R45-45H
10.00 32.80 30° 6.00 YT32R50-30H
other lengths available on request
ASK THE PRODUCTS QUOTES
YT32 circle truss H system

YT32 circle truss H system

Thank you for your inquiry, please enter your information in the form below so that we can serve you better!

Purchase quantity：

parameter

  • Colour: Black / Aluminum (Other colours available on request)
  • Material: aluminum 6082
  • Number of points: 2-point
  • Edge dimension: 29cm
  • System: YT32
  • Type: circle
  • Diameter circle: 2-10m
  • Main Pipe Diameter: 50mm
  • Wall thickness main pipe: 2mm
  • Brace diameter: 20mm
  • Wall thickness Brace: 2mm

NEED HELP?

Need advice about one of our products or services?

CONTACT US

DOWNLOAD

Accessories

  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 2-WAY CORNER
  • YT32 3-WAY CORNER
  • YT32 3-WAY CORNER
  • YT32 3-WAY CORNER
  • YT32 3-WAY CORNER
  • YT32 4-WAY CORNER
  • YT32 4-WAY CORNER
  • YT32 4-WAY CORNER
  • YT32 4-WAY CORNER
  • YT32 4-WAY CORNER

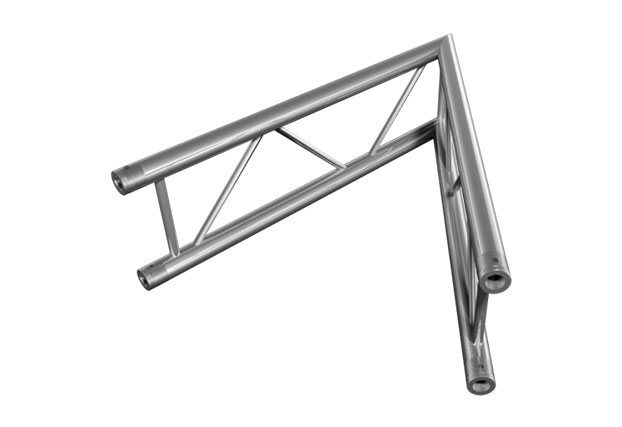

  • YT32 2-WAY CORNER C19 45° V

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

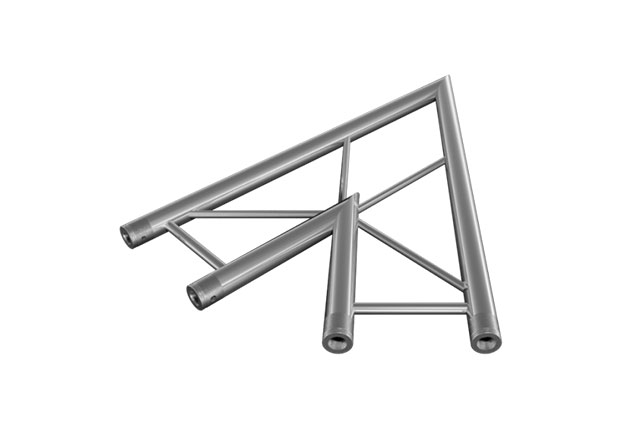

  • YT32 2-WAY CORNER C19 45° H

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

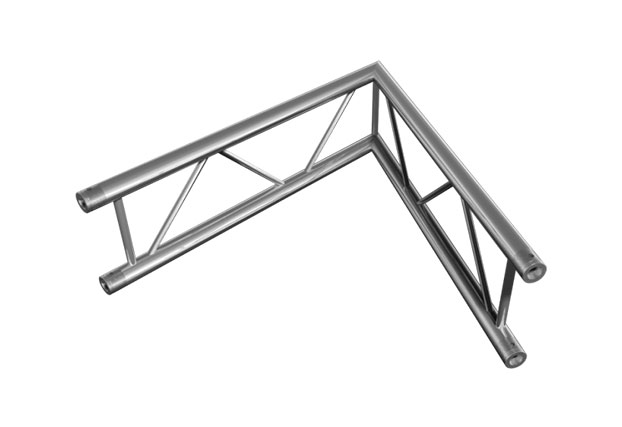

  • YT32 2-WAY CORNER C20 60° V

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

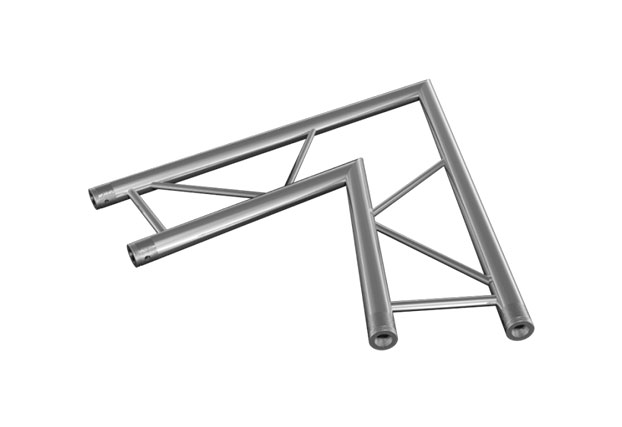

  • YT32 2-WAY CORNER C20 60° H

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

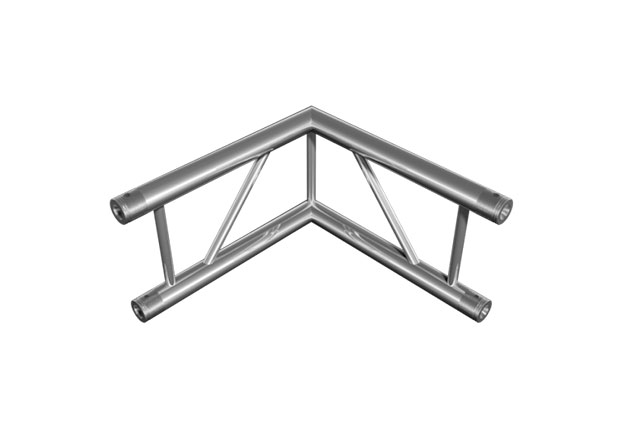

  • YT32 2-WAY CORNER C21 90° V

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

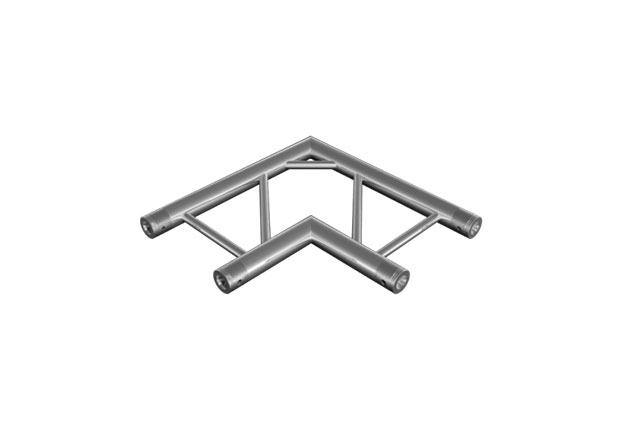

  • YT32 2-WAY CORNER C21 90° H

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

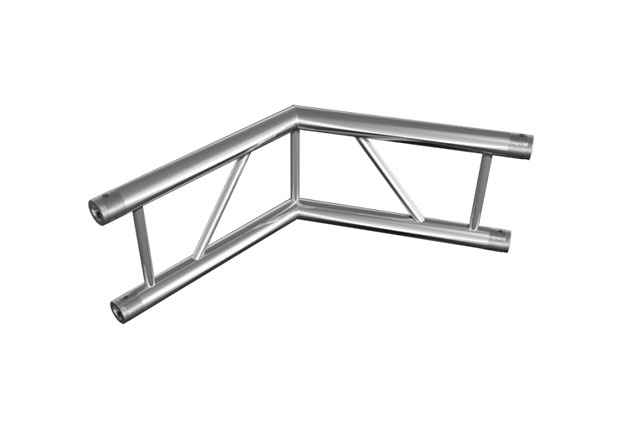

  • YT32 2-WAY CORNER C22 120° V

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

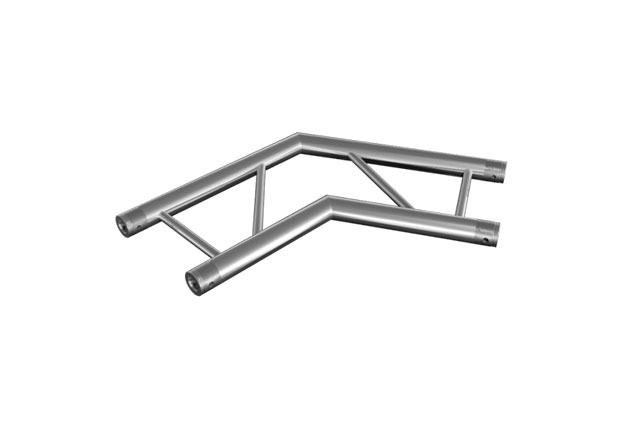

  • YT32 2-WAY CORNER C22 120° H

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

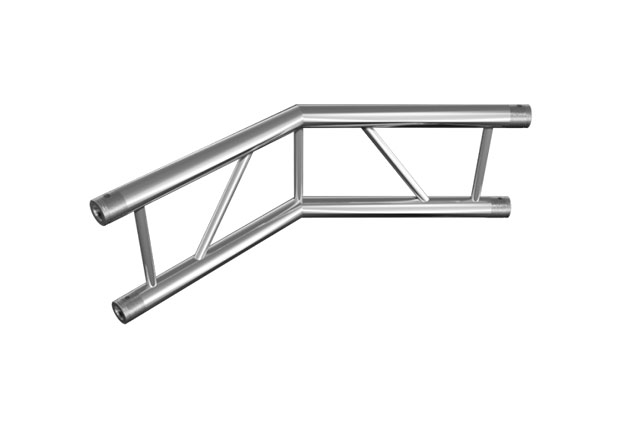

  • YT32 2-WAY CORNER C23 135° V

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

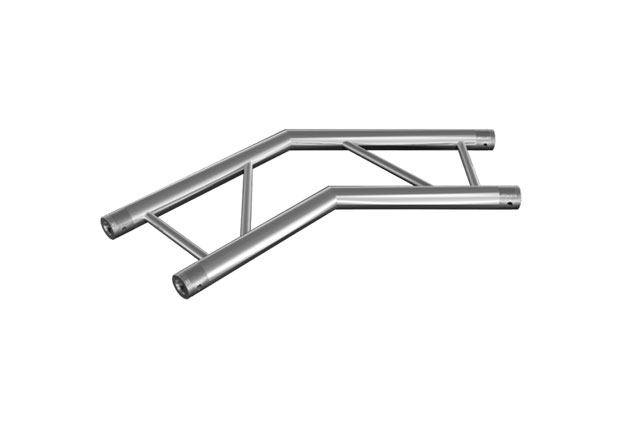

  • YT32 2-WAY CORNER C23 135° H

    YT32 2-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

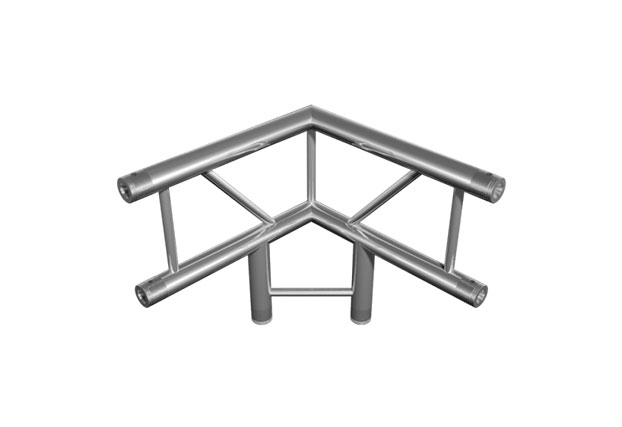

  • YT32 3-WAY CORNER C31 V

    YT32 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

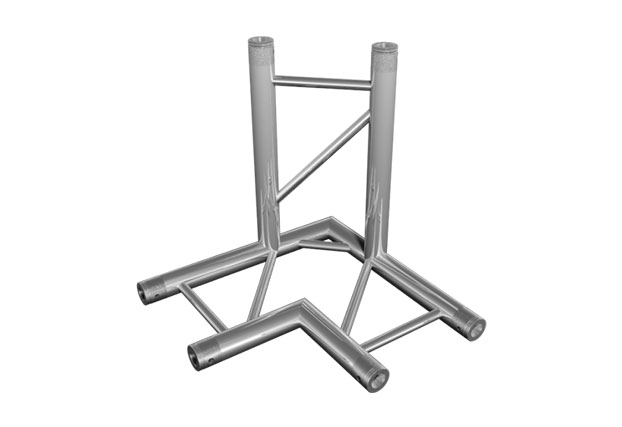

  • YT32 3-WAY CORNER C31 H

    YT32 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT32 3-WAY CORNER T35 V

    YT32 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

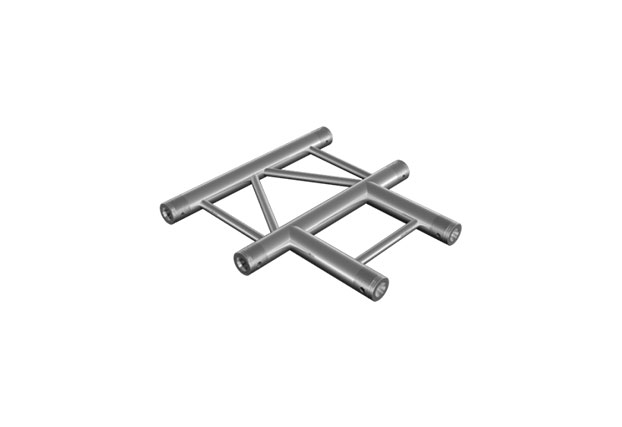

  • YT32 3-WAY CORNER T35 H

    YT32 3-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

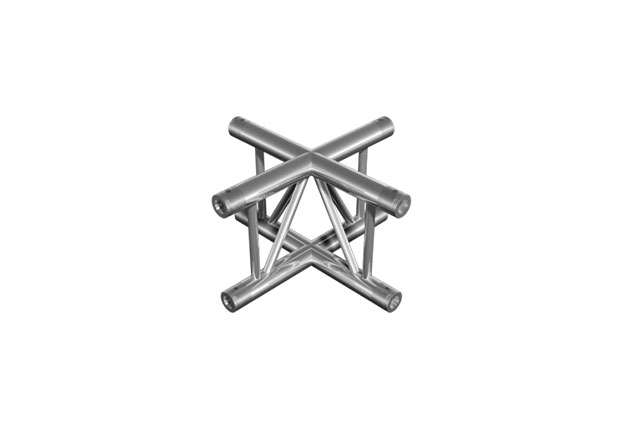

  • YT32 4-WAY CORNER C41 V

    YT32 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

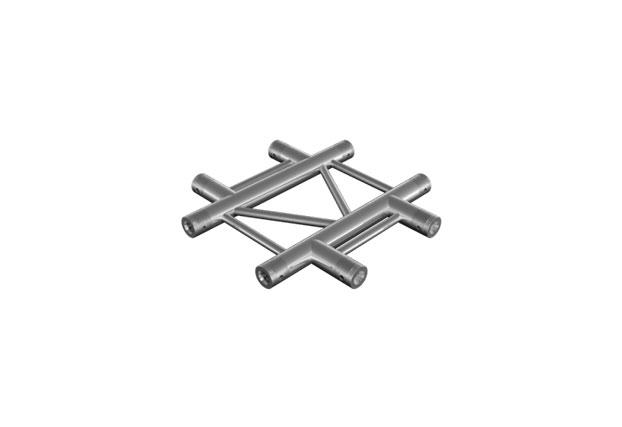

  • YT32 4-WAY CORNER C41 H

    YT32 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

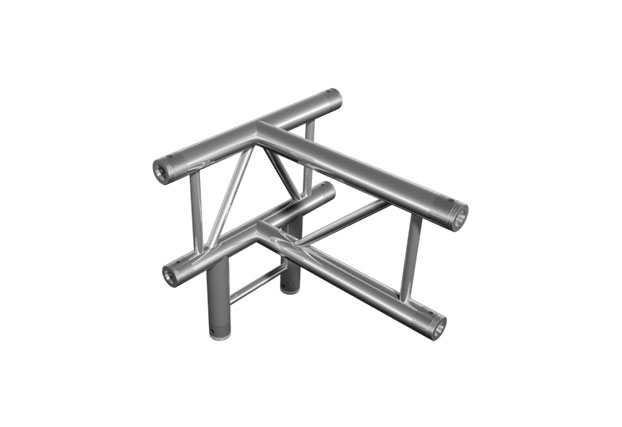

  • YT32 4-WAY CORNER T42 V

    YT32 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US

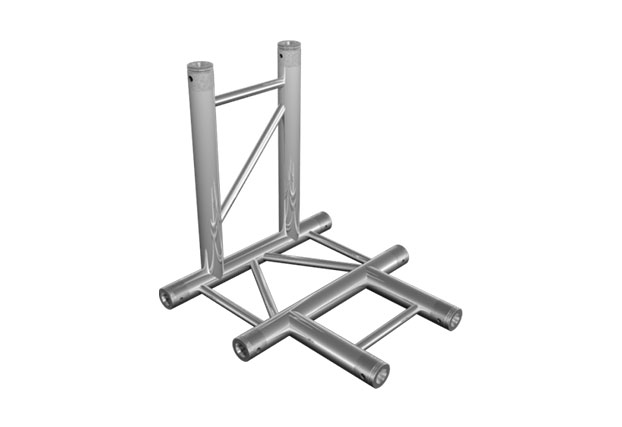

  • YT32 4-WAY CORNER T42 H

    YT32 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT32 4-WAY CORNER T42 H

    YT32 4-WAY CORNER

    Colour: aluminum

    Material: aluminum 6082

    Number of points: 2-point

    Edge dimension: 29cm

    System: YT32

    Type: Corner

    Main Pipe Diameter: 50mm

    Wall thickness main pipe: 2mm

    Brace diameter: 20mm

    Wall thickness Brace: 2mm

    CONTACT US
  • YT32 4-WAY CORNER
