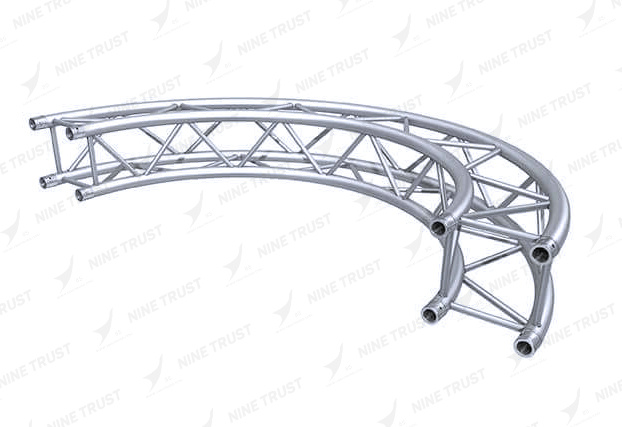

YT34P circle truss system
| Standard available lengths and codes | ||||
|---|---|---|---|---|
| Diameter(Metres) | Diameter(Feet) | Deg | Weight(kg) | Code |
| 2.00 | 6.56 | 180° | 18.00 | YT34R10-180P |
| 3.00 | 9.84 | 90° | 14.00 | YT34R15-90P |
| 4.00 | 13.12 | 90° | 17.40 | YT34R20-90P |
| 5.00 | 16.40 | 45° | 12.20 | YT34R25-45P |
| 6.00 | 19.68 | 60° | 17.20 | YT34R30-60P |
| 7.00 | 22.96 | 45° | 16.00 | YT34R35-45P |
| 8.00 | 26.24 | 45° | 17.50 | YT34R40-45P |
| 9.00 | 29.52 | 45° | 20.00 | YT34R45-45P |
| 10.00 | 32.80 | 30° | 16.50 | YT34R50-30P |
| other lengths available on request | ||||
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material: aluminum 6082
- Number of points: 4-point
- Edge dimension: 29cm
- System: YT34P
- Type: circle
- Diameter circle: 2-10m
- Main Pipe Diameter: 50mm
- Wall thickness main pipe: 3mm
- Brace diameter: 20mm
- Wall thickness Brace: 2mm
