YT32 2-WAY CORNER
Colour: aluminum
Material: aluminum 6082
Number of points: 2-point
Edge dimension: 29cm
System: YT32
Type: Corner
Main Pipe Diameter: 50mm
Wall thickness main pipe: 2mm
Brace diameter: 20mm
Wall thickness Brace: 2mm

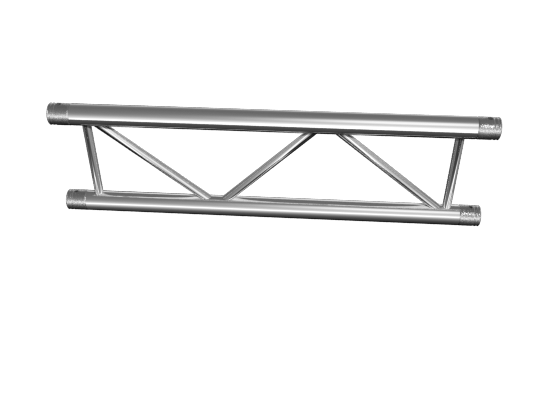

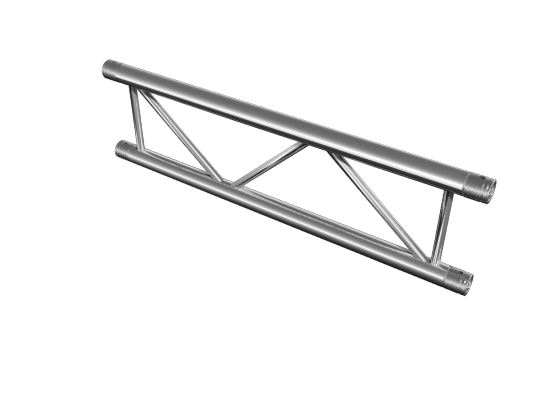

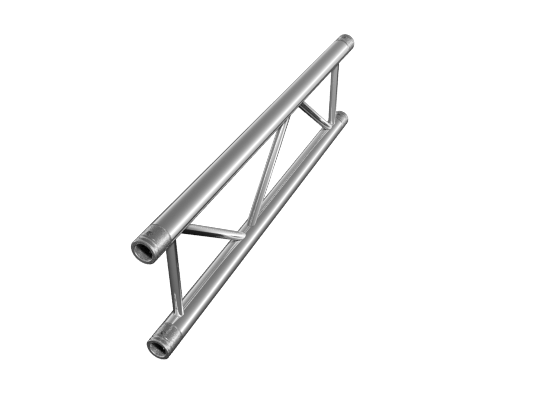

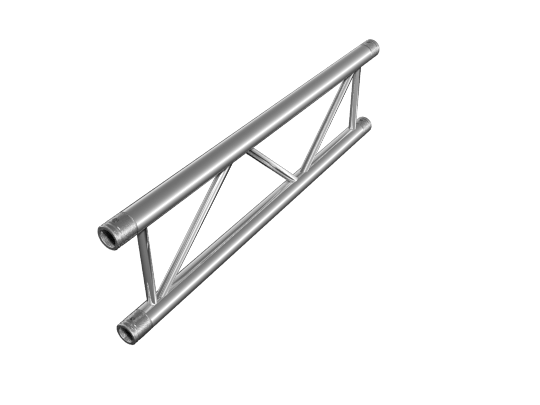

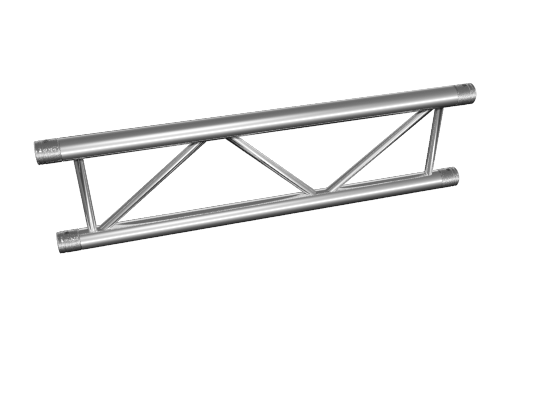

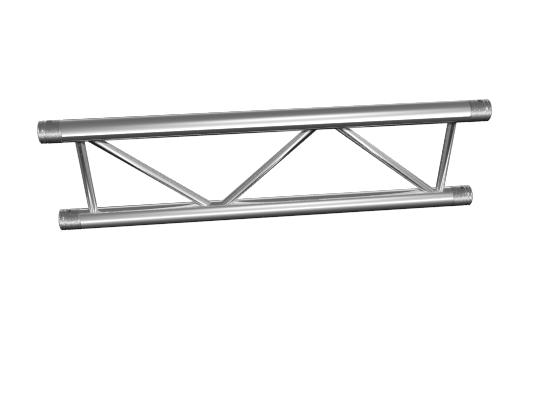

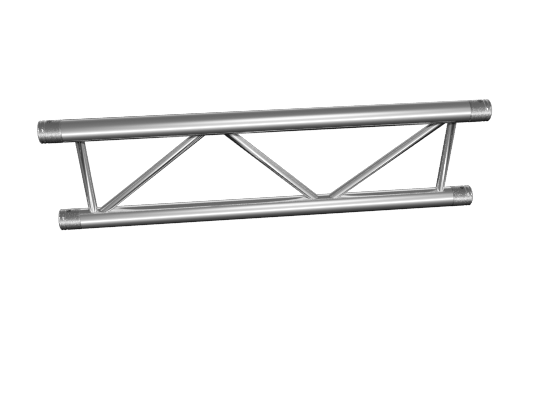

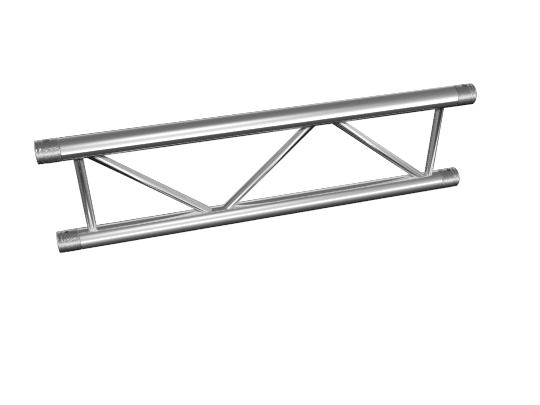

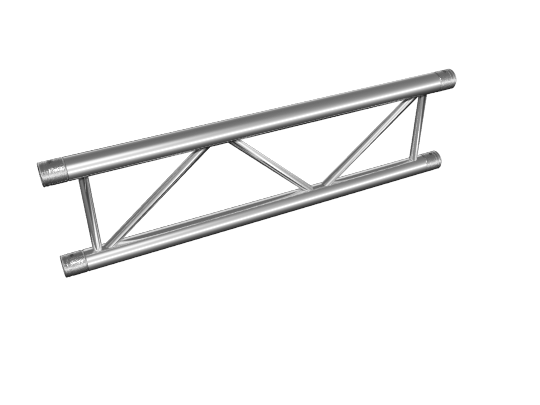

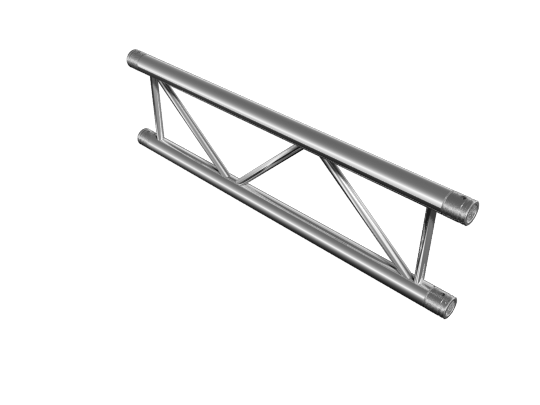

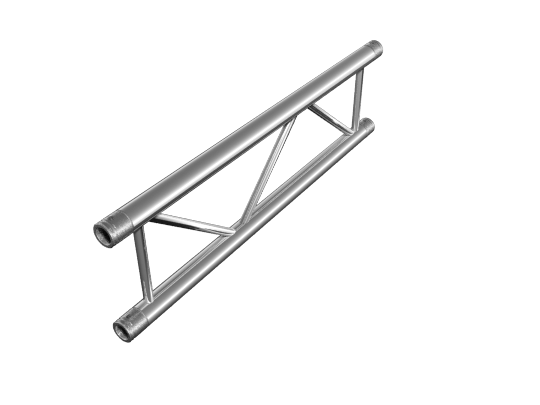

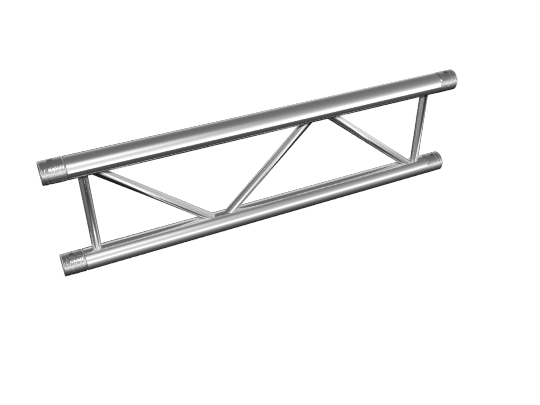

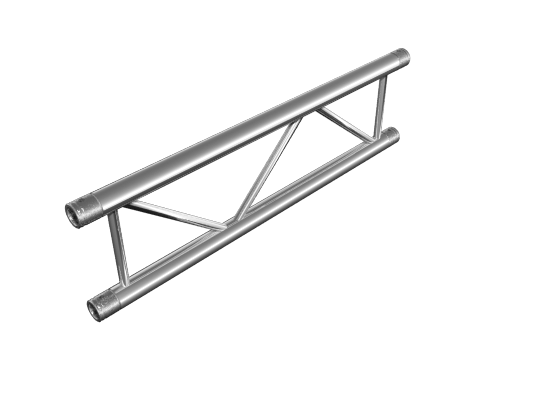

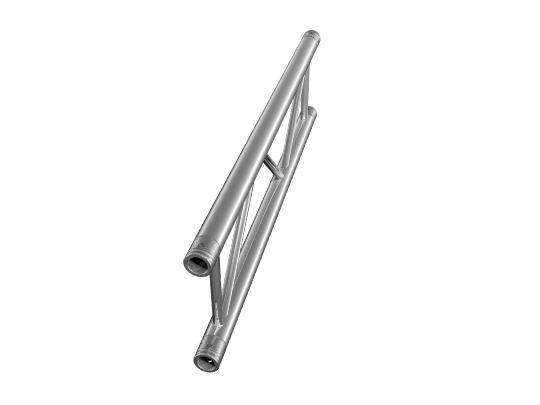

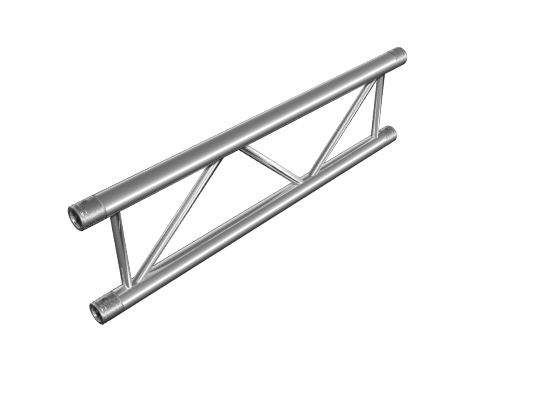

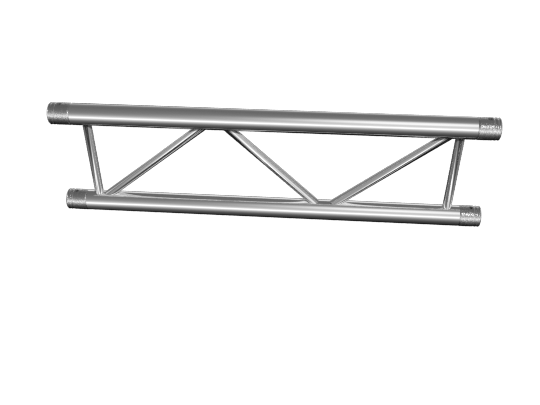

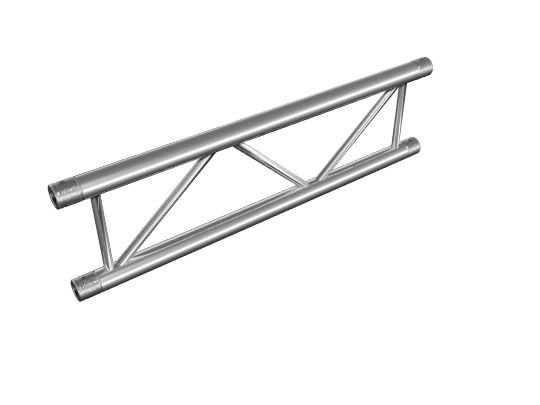

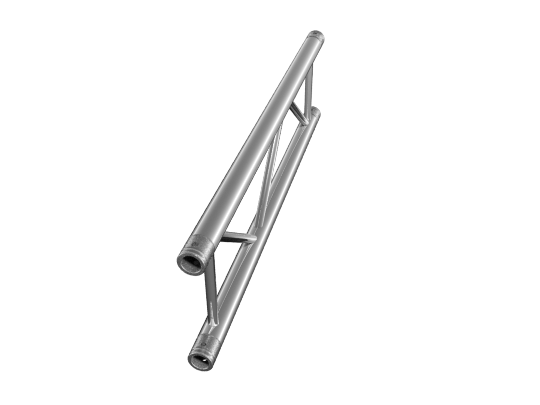

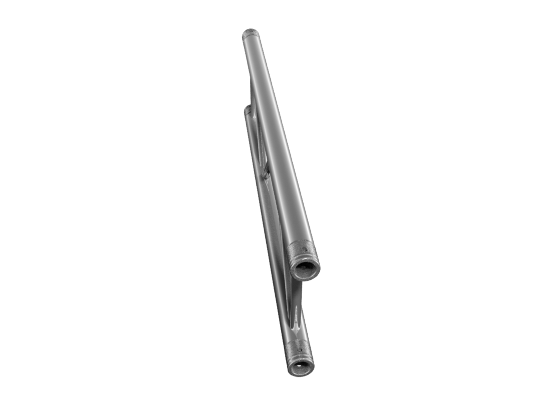

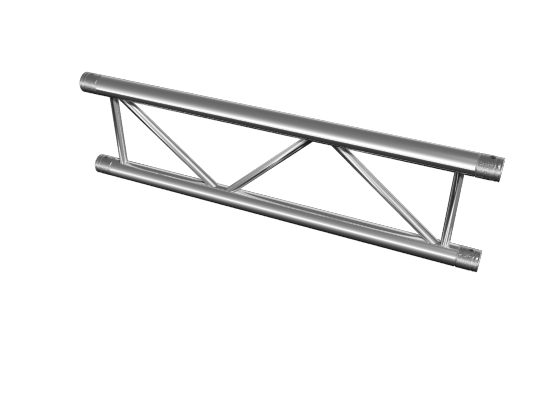

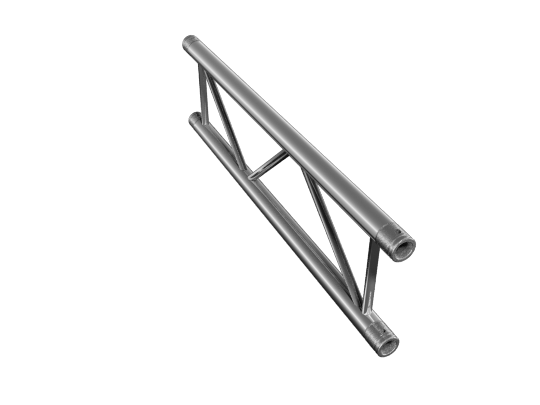

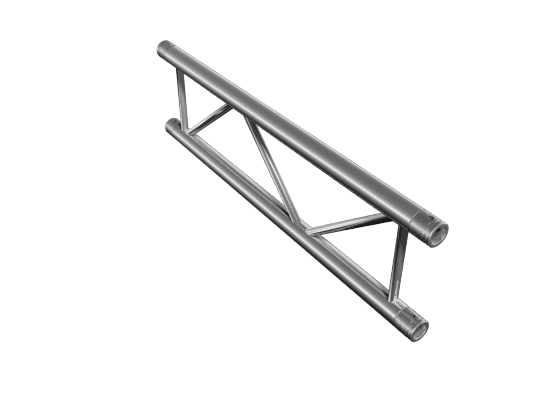

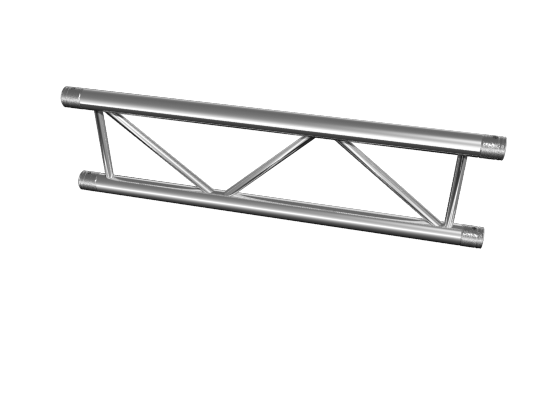

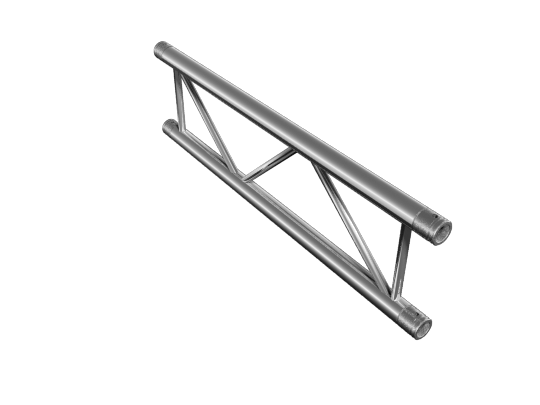

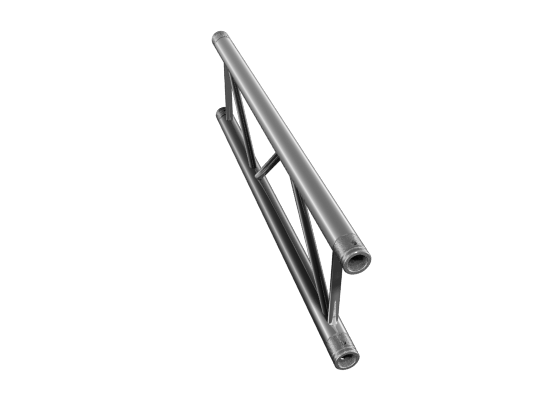

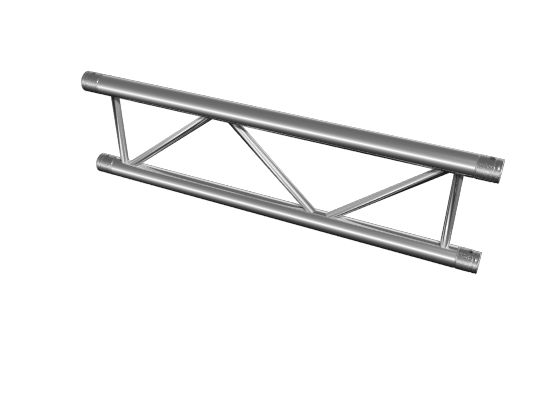

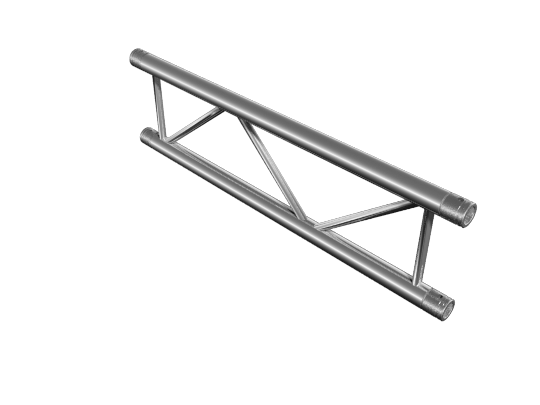

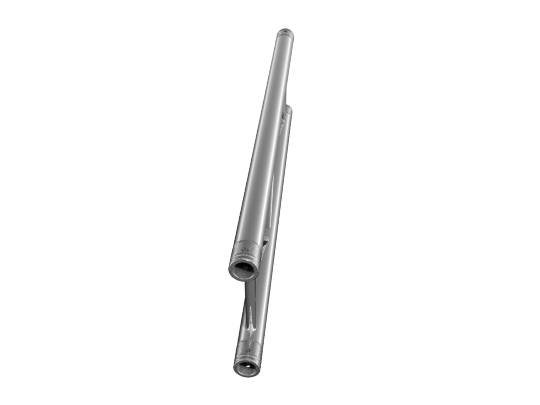

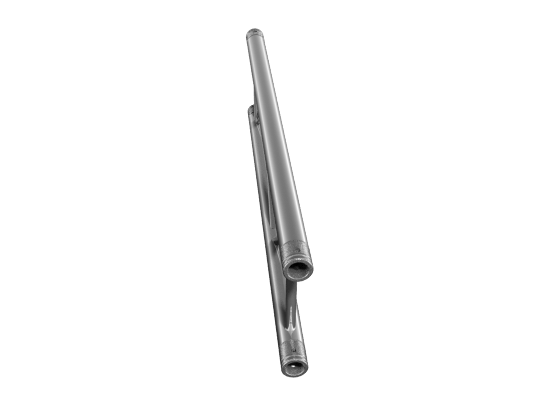

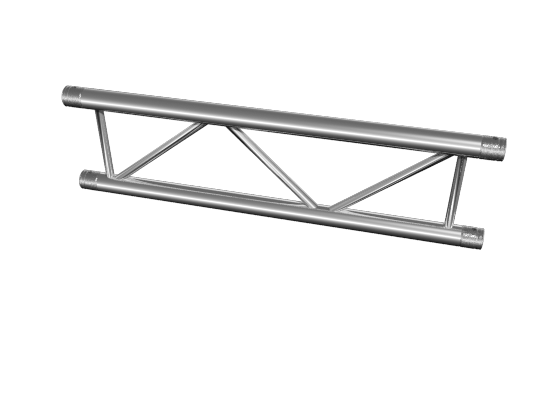

YT32 truss system
| Standard available lengths and codes | |||
|---|---|---|---|
| Metres | Feet | Weight(kg) | Code |
| 0.50 | 1.64 | 1.70 | YT32050 |
| 1.00 | 3.28 | 2.50 | YT32100 |
| 1.50 | 4.92 | 3.50 | YT32150 |
| 2.00 | 6.56 | 4.60 | YT32200 |
| 2.50 | 8.20 | 5.70 | YT32250 |
| 3.00 | 9.84 | 6.70 | YT32300 |
| 3.50 | 11.48 | 7.80 | YT32350 |
| 4.00 | 13.12 | 8.60 | YT32400 |
| 4.50 | 14.76 | 9.90 | YT32450 |
| 5.00 | 16.40 | 10.90 | YT32500 |
| other lengths available on request | |||
parameter
- Colour: Black / Aluminum (Other colours available on request)
- Material: aluminum 6082
- Number of points: 2-point
- Edge dimension: 29cm
- System: YT32
- Type: straight
- Truss length: 0.5-5m
- Main Pipe Diameter: 50mm
- Wall thickness main pipe: 2mm
- Brace diameter: 20mm
- Wall thickness Brace: 2mm
